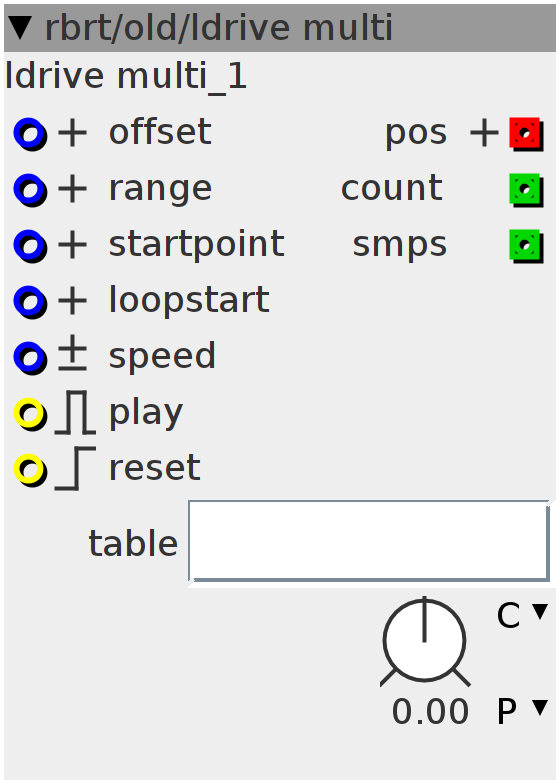

ldrive multi

$\text{[math]}$

drives a phasor (saw-wave) for reading/writing data

Author: robert schirmer

License: BSD

Github: rbrt/old/ldrive multi.axo

Inlets

frac32.positive offset inside the table

frac32.positive length of the area to index,or loop end

frac32.positive start position on 'reset'

frac32.positive loopstart relative to 'range'

frac32.bipolar speed modulation

bool32.risingfalling play or dont

bool32.rising reset to 'startpoint'

Outlets

frac32buffer.positive phase

int32 loop count since reset

int32 lenght of the loop in samples

Parameters

frac32.s.map speed ,+ 64 normal speed forward, - 64 backward

Attributes

objref table

Declaration

float32_t index;
uint32_t r;
uint32_t pos;
int shift;
int range;
int t_speed;
int loopstart;
int reset;
int count;
bool add;

Init

index = 0;
r = 1;

// set 'shift factor' for storing the recording length/the sync output
if (attr_table.LENGTH == 2048) {
  shift = 16;
}
if (attr_table.LENGTH == 4096) {
  shift = 15;
}
if (attr_table.LENGTH == 8192) {
  shift = 14;
}
if (attr_table.LENGTH == 16384) {
  shift = 13;
}
if (attr_table.LENGTH == 32768) {
  shift = 12;
}
if (attr_table.LENGTH == 65536) {
  shift = 11;
}
if (attr_table.LENGTH == 131072) {
  shift = 10;
}
if (attr_table.LENGTH == 262144) {
  shift = 9;
}
if (attr_table.LENGTH == 524288) {
  shift = 8;
}
if (attr_table.LENGTH == 1048576) {
  shift = 7;
}
if (attr_table.LENGTH == 2097152) {
  shift = 6;
}
if (attr_table.LENGTH == 4194304) {
  shift = 5;
}

Audio Rate

range = (inlet_range >> shift);
loopstart = ((___SMMUL(inlet_range, inlet_loopstart) << 5) >> shift);
t_speed = (inlet_speed + param_speed);
reset = (inlet_startpoint >> shift);

if (inlet_reset && r) {
  index = (reset - loopstart);
  r = 0;
  count = 0;
} else {
  if (!inlet_reset)
    r = 1;

  index += (t_speed * (float)(1.0f / (1 << 27)));
  pos = (index + loopstart);
  add = range;

  // set a range

  if (t_speed > 0) {
    if (pos >= range) {
      index = 0;
      count += add;
    }
  } else {
    if (pos <= loopstart) {
      index = (range - loopstart);
      count += add;
    }
  }
}

if (inlet_play)
  outlet_pos = ((pos << shift) + inlet_offset);
else
  outlet_pos = 0;
outlet_count = count;
outlet_smps = (range - loopstart);
