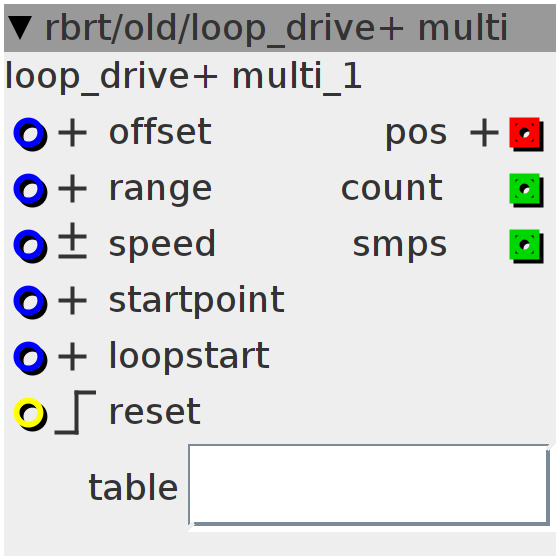

loop_drive+ multi

drives a phasor (saw-wave) for reading/writing data
Author: robert schirmer
License: who cares
Github: rbrt/old/loop_drivePLUS multi.axo

Inlets

frac32.positive offset inside the table

frac32.positive length of the area to index,or loop end

frac32.positive start position inside 'range' on 'reset'

frac32.positive start of the loop

frac32.bipolar sample increment,+ 64 normal speed forward, - 64 backward

bool32.rising reset to 'startpoint'

Outlets

frac32buffer.positive phase

int32 loop count since reset

int32 lenght of the loop in samples

Attributes

objref table

Declaration
float32_t index;
uint32_t r;
uint32_t pos;
int shift;
int range;
int reset;
int loopstart;
int count;
bool add;
Init
index = 0;
r = 1;

// set 'shift factor' for storing the recording length/the sync output
if (attr_table.LENGTH == 2048) {
  shift = 16;
}
if (attr_table.LENGTH == 4096) {
  shift = 15;
}
if (attr_table.LENGTH == 8192) {
  shift = 14;
}
if (attr_table.LENGTH == 16384) {
  shift = 13;
}
if (attr_table.LENGTH == 32768) {
  shift = 12;
}
if (attr_table.LENGTH == 65536) {
  shift = 11;
}
if (attr_table.LENGTH == 131072) {
  shift = 10;
}
if (attr_table.LENGTH == 262144) {
  shift = 9;
}
if (attr_table.LENGTH == 524288) {
  shift = 8;
}
if (attr_table.LENGTH == 1048576) {
  shift = 7;
}
if (attr_table.LENGTH == 2097152) {
  shift = 6;
}
if (attr_table.LENGTH == 4194304) {
  shift = 5;
}
Audio Rate
range = (inlet_range >> shift);
reset = ((___SMMUL(inlet_range, inlet_startpoint) << 5) >> shift);
loopstart = ((___SMMUL(inlet_range, inlet_loopstart) << 5) >> shift);

{
  if (inlet_reset && r) {
    index = reset;
    r = 0;
    count = 0;
  } else {
    if (!inlet_reset)
      r = 1;

    index += (inlet_speed * (float)(1.0f / (1 << 27)));
    pos = (index + loopstart);
    add = range;

    // set a range

    if (inlet_speed > 0) {
      if (pos >= (range)) {
        index = 0;
        count += add;
      }
    } else {
      if (pos <= loopstart) {
        index = (range - loopstart);
        count += add;
      }
    }
  }
  outlet_pos = ((pos << shift) + inlet_offset);
  outlet_count = count;
  outlet_smps = (range - loopstart);
}
