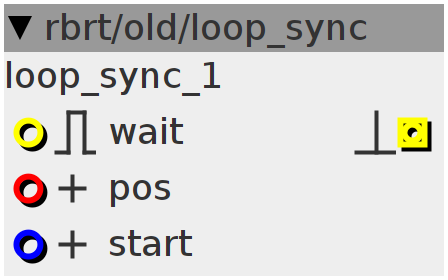

loop_sync
if 'wait' is high,'loop_sync' will wait until the signal at 'pos' reaches the value defined by 'start'. the, a pulse is put out at outlet 'trig'.
Inlets
frac32.positive sync position
bool32.risingfalling wait
frac32buffer.positive phase in
Outlets
bool32.pulse sync trigger
Audio Rate
int csample = (inlet_pos >> 13);
int spos = (inlet_start >> 13);
if ((inlet_wait) && ((csample > (spos - 24)) && (csample < (spos + 24)))) {
outlet_trig = 1;
} else
outlet_trig = 0;
