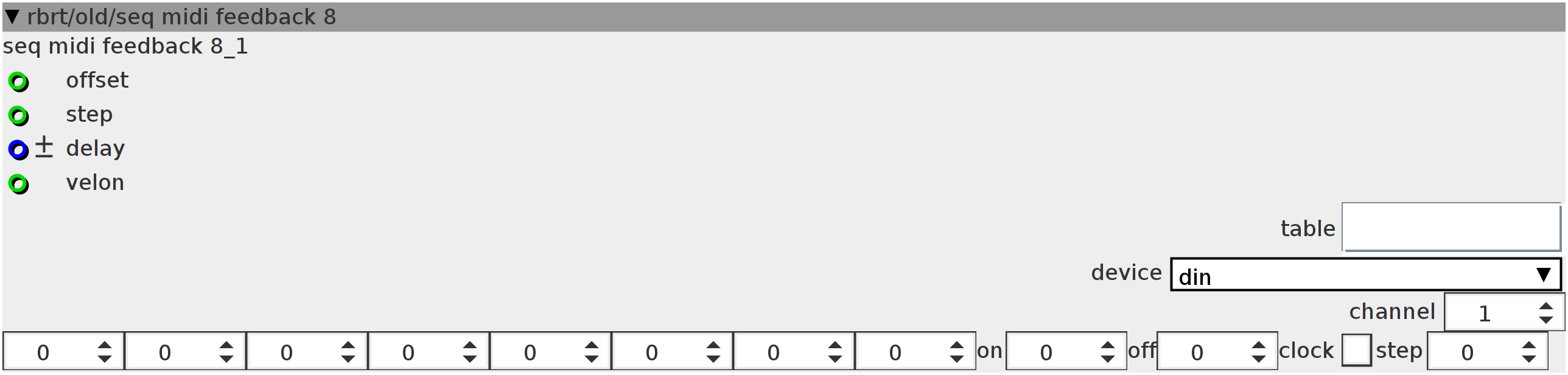

seq midi feedback 8
visual feedback of table data for bidirectional midi-controllers (f.i. novation launchpad,livid base). 8 elements of a table are mapped to midi - notes.
Inlets
frac32.bipolar delay time for step position display
int32 offset in the table
int32 current step
int32 velocity on modulation
Outlets
None
Parameters
int32.mini map the step to midi notes
int32.mini map the step to midi notes
int32.mini map the step to midi notes
int32.mini map the step to midi notes
int32.mini map the step to midi notes
int32.mini map the step to midi notes
int32.mini map the step to midi notes
int32.mini map the step to midi notes
int32 note velocity if step > 0
int32 note velocity if step <= 0
int32 velocity for current step
bool32.tgl display the current step
Attributes
combo device
spinner channel
objref table
int ntrig;
int rtrig;
int prev;
int prevon;
int32_t val;
int32_t map[8];
int v;
int i;
int vt;
int trigt;
int prevt[16];{
int i;
for (i = 0; i < 8; i++)
prevt[i] = -666;
}map[0] = param_i0;
map[1] = param_i1;
map[2] = param_i2;
map[3] = param_i3;
map[4] = param_i4;
map[5] = param_i5;
map[6] = param_i6;
map[7] = param_i7;
// re-init
if (inlet_velon != prevon) {
int i;
for (i = 0; i < 8; i++)
prevt[i] = -666;
prevon = inlet_velon;
}
// display steps
{
i += 1;
if (i == 8)
i = 0;
vt = attr_table.array[__USAT((inlet_offset + i), attr_table.LENGTHPOW)]
<< attr_table.GAIN;
if (prevt[i] != vt)
trigt = 0;
prevt[i] = vt;
if (vt && (!trigt)) {
MidiSend3((midi_device_t)attr_device, MIDI_NOTE_ON + (attr_channel - 1),
map[i], param_on);
trigt = 1;
}
if ((!vt) && (!trigt)) {
MidiSend3((midi_device_t)attr_device, MIDI_NOTE_ON + (attr_channel - 1),
map[i], param_off);
trigt = 1;
}
}
// paint step index
if (param_clock) {
v = attr_table
.array[__USAT((inlet_offset + inlet_step), attr_table.LENGTHPOW)]
<< attr_table.GAIN;
if ((inlet_step != prev) && !ntrig) {
val = 1 << 30;
ntrig = 1;
MidiSend3((midi_device_t)attr_device, MIDI_NOTE_ON + (attr_channel - 1),
map[inlet_step], param_step);
} else {
if (!(inlet_step != prev))
ntrig = 0;
if (val > 0) {
int32_t t;
MTOF(-((1 << 12) - inlet_delay), t);
val -= t >> 3;
if (val <= 0) {
if (v)
MidiSend3((midi_device_t)attr_device,
MIDI_NOTE_ON + (attr_channel - 1), map[inlet_step],
param_on);
else
MidiSend3((midi_device_t)attr_device,
MIDI_NOTE_ON + (attr_channel - 1), map[inlet_step],
param_off);
}
}
}
prev = inlet_step;
}
