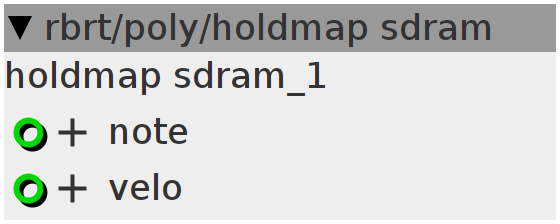

holdmap sdram
creates a table named like the object that can be referenced in the patcher and creates a 'map' of all notes currently held down,including velocities. no 'aftertouch'.
Inlets
int32.positive note
int32.positive velo
Outlets
None
Declaration
uint8_t pren;
uint8_t prev;
static const uint8_t LENGTHPOW = 7;
static const uint8_t LENGTH = 1 << 7;
static const uint8_t LENGTHMASK = (1 << 7) - 1;
static const uint8_t BITS = 8;
static const uint8_t GAIN = 20;
uint8_t *array;
Init
static uint8_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
array = &_array[parent->polyIndex][0];
{
int i;
for (i = 0; i < LENGTH; i++)
array[i] = 0;
}
Control Rate
if ((inlet_note != pren) || (inlet_velo != prev)) {
array[__USAT((inlet_note), LENGTHPOW)] = inlet_velo;
pren = inlet_note;
prev = inlet_velo;
}
