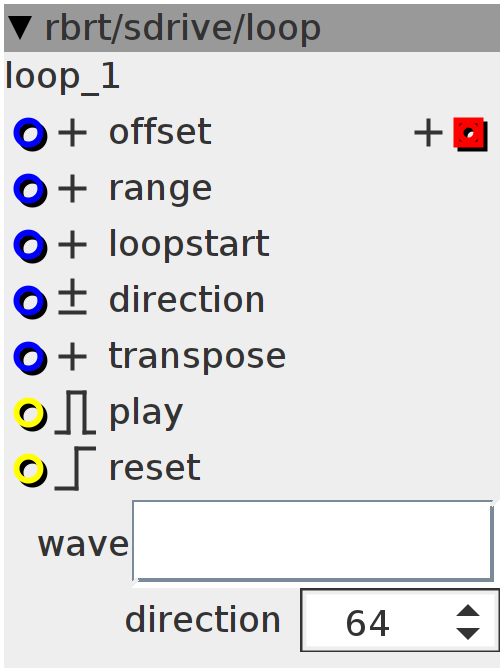

loop

$\text{[math]}$

drives a phasor (saw-wave) for reading/writing data

Author: robert schirmer

License: BSD

Github: rbrt/sdrive/loop.axo

Inlets

bool32.rising reset to 'offset'

frac32.positive offset inside the table

frac32.positive length of the area to index,or loop end

frac32.positive loopstart inside 'range'

frac32.positive tansposition in semi-notes

frac32.bipolar speed modulation

bool32.risingfalling toggle playback

Outlets

frac32buffer.positive position inside table

Attributes

objref table to index

spinner forward or reverse

Declaration

uint8_t shift;
uint8_t scale;

uint32_t lrange;
uint32_t lstart;

int32_t t_speed;
uint32_t inc;
int32_t index;

bool play;
bool rro;

Init

shift = (27 - attr_wave.LENGTHPOW);
scale = (attr_wave.LENGTHPOW < 6) ? 0 : 4;

Control Rate

MTOFEXTENDED(inlet_transpose + (1 << 22) + 512000, inc);
t_speed = ((___SMMUL(inc, inlet_direction + (attr_direction << 21))) << 5) >>
          (attr_wave.LENGTHPOW - (scale + 2));
lstart = (___SMMUL(inlet_range, inlet_loopstart) << 5) << scale;
lstart = (t_speed > 0) ? lstart : lstart - t_speed;
lrange = inlet_range << scale;

if (inlet_play && !play) {
  play = 1;
  index = 0;
}
if (!inlet_play)
  play = 0;

if (inlet_reset && (!rro)) {
  index = 0;
  rro = 1;
}
if (!inlet_reset)
  rro = 0;

if (!lrange)
  play = 0;

Audio Rate

if (t_speed > 0) {
  if (index >= lrange)
    index = lstart;
} else if (index <= lstart)
  index = lrange;

outlet_phase = __USAT(((index >> scale) + inlet_offset), 27) * play;
index += t_speed;
