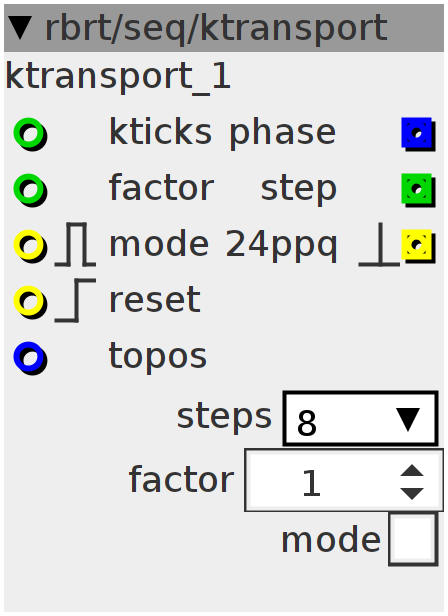

ktransport
sort of a transport for sequencing. 3000 at inlet 'kticks' will result in a 1hz wave ranging from 0 to 64. also,a position between 0 and the value of 'steps' is put out,as well as 24ppq - pulses. 'factor' sets a multiplikation or divison factor,while 'mode' selects whether to multiply or divide the 'tempo'.
Inlets
frac32 reset phase to position
int32 length in kticks
int32 multiplies 'factor'
bool32.risingfalling or 'mode'
bool32.rising reset phase
Outlets
int32 step index from 0 to 'steps'
bool32.pulse 24 ppq pulse
frac32 phase 0. till 64.
Parameters
bool32.tgl 0 = multiply, 1 = divide
int32 multiplication or division factor
Attributes
combo how many steps per bar?
uint32_t Phase;
uint32_t r;
uint64_t freq;
uint32_t base;
uint8_t factor;
uint8_t steps;
uint32_t prev;
uint32_t ppq;Phase = 0;
r = 1;factor = ((inlet_factor) ? inlet_factor : 1) * param_factor;
base = (param_mode || inlet_mode) ? (inlet_kticks * factor)
: (inlet_kticks / factor);
freq = (int)(281474976710656.f / (base * (128 << 7)));
steps = 29 - attr_steps;
{
if (inlet_reset && r) {
Phase = inlet_topos << 5;
r = 0;
} else {
if (!inlet_reset)
r = 1;
Phase += freq >> 2;
}
outlet_phase = (Phase >> 5);
outlet_step = (Phase >> steps);
ppq = ((Phase >> 25) * 3) >> 2;
if (ppq != prev) {
outlet_24ppq = 1;
prev = ppq;
} else
outlet_24ppq = 0;
}
