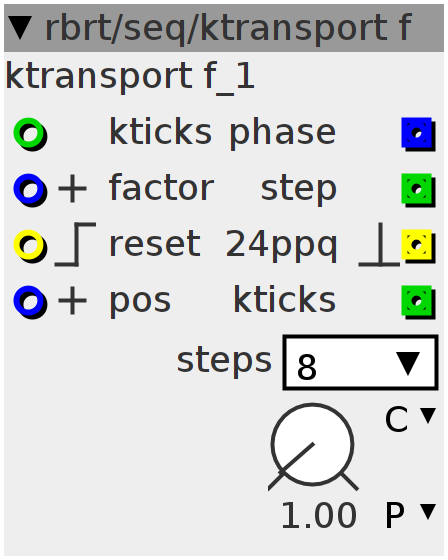

ktransport f
sort of a transport for sequencing. 3000 at inlet 'kticks' will result in a 1hz wave ranging from 0 to 64. also,a position between 0 and the value of 'steps' is put out,as well as 24ppq - pulses. 'factor' sets a multiplikation factor,where 'factor' < 1 results in a division. 'reset' resets the phase to the value at inlet 'pos'. outlet 'kticks'== the length in kticks after the scaling.
Inlets
int32 length in samples
frac32.positive scaling factor
frac32.positive pos
bool32.rising reset phase to 'pos'
Outlets
frac32 phase 0. till 64.
int32 step index from 0 to 'steps'
int32 length in k-ticks
bool32.pulse 24 ppq pulse
Parameters
frac32.u.map factor
Attributes
combo how many steps per bar?
uint32_t Phase;
uint32_t pos;
uint32_t r;
uint64_t freq;
uint32_t base;
uint32_t factor;
uint8_t steps;
uint32_t prev;
uint32_t ppq;Phase = 0;
r = 1;factor = (param_factor + inlet_factor) >> 16;
base = (inlet_kticks << 5) / factor;
freq = (int)(281474976710656.f / (base * (128 << 7)));
steps = 29 - attr_steps;
{
if (inlet_reset && r) {
Phase = inlet_pos << 5;
r = 0;
} else {
if (!inlet_reset)
r = 1;
Phase += freq >> 2;
}
outlet_phase = (Phase >> 5);
outlet_step = (Phase >> steps);
ppq = ((Phase >> 25) * 3) >> 2;
if (ppq != prev) {
outlet_24ppq = 1;
prev = ppq;
} else
outlet_24ppq = 0;
}
outlet_kticks = base;
