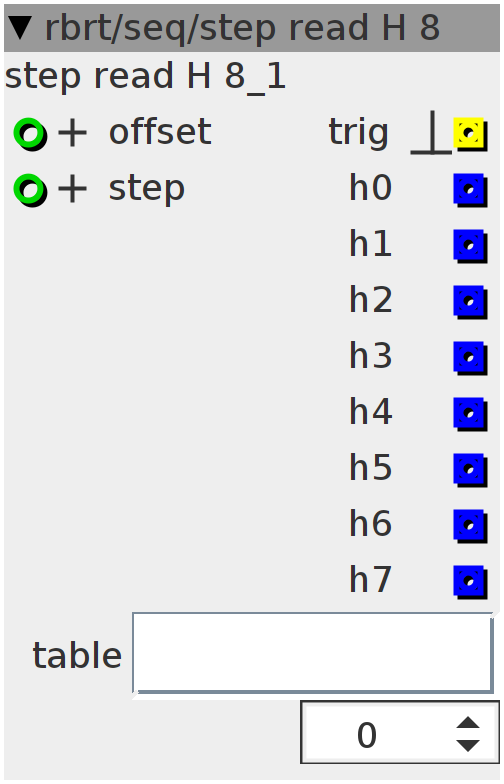

step read H 8
reads a block of 8 elements from a table ,starting at 'step'. 'trig' = puts out a pulse if the first element of the block is greater than 0. 'h0' - 'h7' = the 8 values at index 'step' + index of the output, IF 'trig' is 'true'.
Inlets
int32.positive offset
int32.positive index
Outlets
frac32 h0
frac32 h1
frac32 h2
frac32 h3
frac32 h4
frac32 h5
frac32 h6
frac32 h7
bool32.pulse trigger if value > 0
Parameters
int32 offset
Attributes
objref table
int prev;
int offset;
int h0;
int h1;
int h2;
int h3;
int h4;
int h5;
int h6;
int h7;offset = (inlet_offset + param_offset);
if ((inlet_step != prev) &&
((attr_table.array[__USAT((inlet_step + offset), attr_table.LENGTHPOW)]
<< attr_table.GAIN) > 0)) {
outlet_trig = 1;
h0 = attr_table.array[__USAT((inlet_step + offset), attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_h0 = h0;
h1 = attr_table.array[__USAT((inlet_step + offset + 1), attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_h1 = h1;
h2 = attr_table.array[__USAT((inlet_step + offset + 2), attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_h2 = h2;
h3 = attr_table.array[__USAT((inlet_step + offset + 3), attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_h3 = h3;
h4 = attr_table.array[__USAT((inlet_step + offset + 4), attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_h4 = h4;
h5 = attr_table.array[__USAT((inlet_step + offset + 5), attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_h5 = h5;
h6 = attr_table.array[__USAT((inlet_step + offset + 6), attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_h6 = h6;
h7 = attr_table.array[__USAT((inlet_step + offset + 7), attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_h7 = h7;
} else {
outlet_trig = 0;
outlet_h0 = h0;
outlet_h1 = h1;
outlet_h2 = h2;
outlet_h3 = h3;
outlet_h4 = h4;
outlet_h5 = h5;
outlet_h6 = h6;
outlet_h7 = h7;
}
prev = inlet_step;
