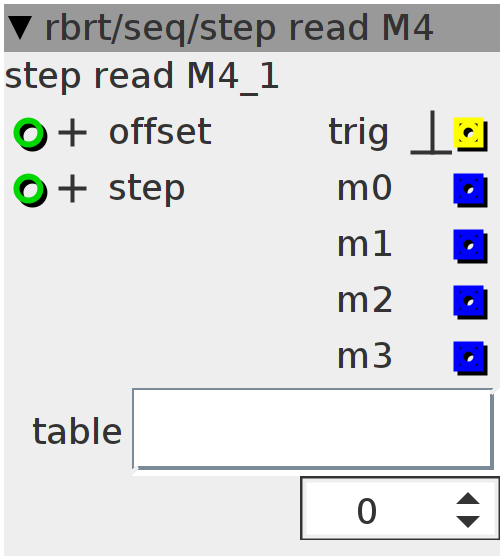

step read M4
reads a block of 4 elements from a table ,starting at 'step'. 'trig' = puts out a pulse if the first element of the block is greater than 0. 'm0' - 'm3' = the 4 values at index 'step' + index of the output.
Inlets
int32.positive offset
int32.positive index
Outlets
frac32 m0
frac32 m1
frac32 m2
frac32 m3
bool32.pulse trigger if value > 0
Parameters
int32 offset
Attributes
objref table
int prev;
int offset;offset = (inlet_offset + param_offset);
if ((inlet_step != prev) &&
((attr_table.array[__USAT((inlet_step + offset), attr_table.LENGTHPOW)]
<< attr_table.GAIN) > 0))
outlet_trig = 1;
else
outlet_trig = 0;
outlet_m0 =
attr_table.array[__USAT((inlet_step + offset), attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_m1 =
attr_table.array[__USAT((inlet_step + offset + 1), attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_m2 =
attr_table.array[__USAT((inlet_step + offset + 2), attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_m3 =
attr_table.array[__USAT((inlet_step + offset + 3), attr_table.LENGTHPOW)]
<< attr_table.GAIN;
prev = inlet_step;
