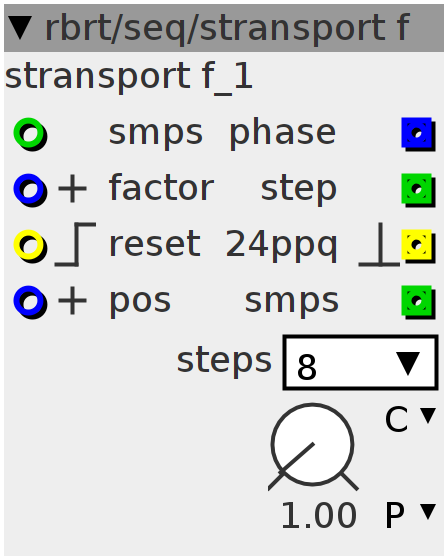

stransport f

sort of a transport for sequencing. 48000 at inlet 'smps' will result in a 1hz wave ranging from 0 to 64. also,a position between 0 and the value of 'steps' is put out,as well as 24ppq - pulses. 'factor' sets a multiplikation factor,where 'factor' < 1 results in a division. 'reset' resets the phase to the value at inlet 'pos'. outlet 'smps'== the length in samples after the scaling.
Author: robert schirmer
License: BSD
Github: rbrt/seq/stransport f.axo

Inlets

int32 length in samples

frac32.positive scaling factor

frac32.positive pos

bool32.rising reset phase to 'pos'

Outlets

bool32.pulse 24 ppq pulse

frac32 phase 0. till 64.

int32 step index from 0 to 'steps'

int32 length in samples

Parameters

frac32.u.map factor

Attributes

combo how many steps per bar?

Declaration
uint32_t Phase;
uint32_t pos;
uint32_t r;
uint64_t freq;
uint32_t base;
uint32_t factor;
uint8_t steps;
uint32_t prev;
uint32_t ppq;
Init
Phase = 0;
r = 1;
Control Rate
factor = (param_factor + inlet_factor) >> 16;
base = (inlet_smps << 5) / factor;
freq = (int)(281474976710656.f / (base * (128 << 3)));
steps = 29 - attr_steps;

{
  if (inlet_reset && r) {
    Phase = inlet_pos << 5;
    r = 0;
  } else {
    if (!inlet_reset)
      r = 1;

    Phase += freq >> 2;
  }
  outlet_phase = (Phase >> 5);
  outlet_step = (Phase >> steps);

  ppq = ((Phase >> 25) * 3) >> 2;
  if (ppq != prev) {
    outlet_24ppq = 1;
    prev = ppq;
  } else
    outlet_24ppq = 0;
}

outlet_smps = base;
