shaper interp

$\text{[math]}$

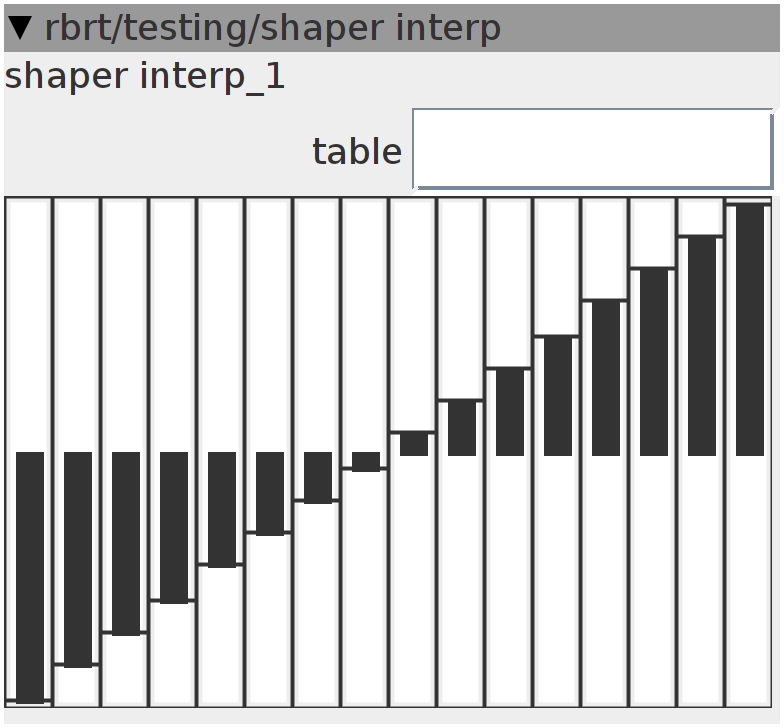

set 16 elements of a table to the value of the sliders,starting from 'offset'

Author: Johannes Taelman

License: BSD

Github: rbrt/testing/shaper interp.axo

Inlets

None

Outlets

None

Parameters

frac32.s.mapvsl b0

frac32.s.mapvsl b1

frac32.s.mapvsl b2

frac32.s.mapvsl b3

frac32.s.mapvsl b4

frac32.s.mapvsl b5

frac32.s.mapvsl b6

frac32.s.mapvsl b7

frac32.s.mapvsl b8

frac32.s.mapvsl b9

frac32.s.mapvsl b10

frac32.s.mapvsl b11

frac32.s.mapvsl b12

frac32.s.mapvsl b13

frac32.s.mapvsl b14

frac32.s.mapvsl b15

Attributes

objref table

Declaration

int32_t array[16];

int steps;
int inc;

int i;
int ii;
int iii;

int b;
int a;

Init

steps = (attr_table.LENGTH >> 4);

Control Rate

array[0] = param_b0;
array[1] = param_b1;
array[2] = param_b2;
array[3] = param_b3;
array[4] = param_b4;
array[5] = param_b5;
array[6] = param_b6;
array[7] = param_b7;
array[8] = param_b8;
array[9] = param_b9;
array[10] = param_b10;
array[11] = param_b11;
array[12] = param_b12;
array[13] = param_b13;
array[14] = param_b14;
array[15] = param_b15;

Audio Rate

if ((i + 1) > 15)
  b = 0;
else
  b = i + 1;
inc = ((array[b] - array[i]) / steps);
attr_table.array[((i * steps) + ii)] = (array[i] + (inc * ii));
if (ii < steps)
  ii++;
else {
  ii = 0;
  i++;
}
if (i > 15)
  i = 0;
