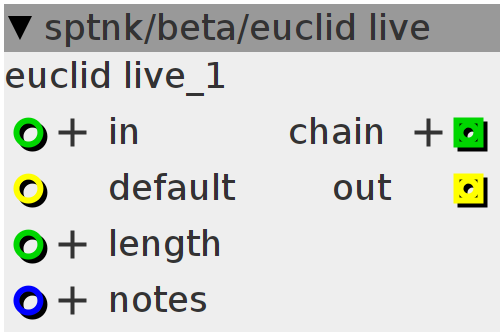

euclid live
Euclidean rhythm generator. Chainable. Notes specifics the number of active steps, length the number of steps of the sequence. Inlet in specifics what step to read, like sel i 16/32 or disp/ibar . If outside the range the default inlet will be outputted (like said objects). Dynamic algorithm, 10% dsp load worst case with 63 notes and 64 rests.
Inlets
int32.positive step select
int32.positive length of the pattern
bool32 default value to chain objects
frac32.positive percent of active notes
Outlets
int32.positive chain output
bool32 bool out
Declaration
bool sequence[128];
Control Rate
int notes = ___SMMUL(inlet_length << 5, __USAT(inlet_notes, 27));
int rests = inlet_length - notes;
int length = __USAT(inlet_length, 7);
outlet_chain = inlet_in - length;
if (rests) {
if (notes < rests) {
int mul = rests / notes;
int rem = rests - (mul * notes);
int ii = 0;
int temp;
for (int i = 0; i < notes; i += 1) {
if (i < rem) {
temp = ii;
sequence[ii] = 1;
for (ii = temp + 1; ii < temp + mul + 2; ii += 1)
sequence[ii] = 0;
} else {
temp = ii;
sequence[ii] = 1;
for (ii = temp + 1; ii < temp + mul + 1; ii += 1)
sequence[ii] = 0;
}
}
} else if (notes > rests) {
int mul = notes / rests;
int rem = notes - (mul * rests);
int ii = 0;
int temp;
for (int i = 0; i < rests; i += 1) {
if (i < rem) {
sequence[ii] = 1;
ii += 1;
sequence[ii] = 0;
temp = ii;
for (ii = temp + 1; ii < temp + mul + 1; ii += 1)
sequence[ii] = 1;
} else {
sequence[ii] = 1;
ii += 1;
sequence[ii] = 0;
temp = ii;
for (ii = temp + 1; ii < temp + mul; ii += 1)
sequence[ii] = 1;
}
}
} else {
sequence[0] = 1;
for (int i = 1; i < length; i += 1)
sequence[i] = !sequence[i - 1];
}
} else {
for (int ii = 0; ii < length; ii += 1)
sequence[ii] = 1;
}
if (inlet_in >= 0 && inlet_in < length)
outlet_out = sequence[inlet_in];
else
outlet_out = inlet_default;
