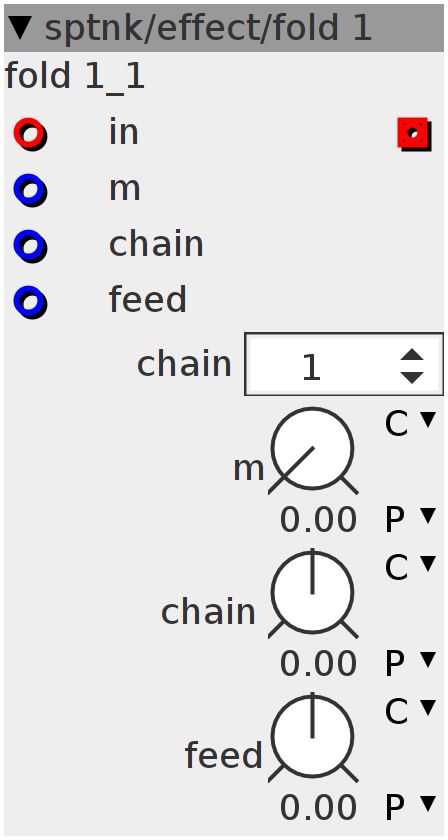

frac32buffer input

frac32 shape parameter

frac32 "rule" for m parameter in chained units

frac32 global feedback

frac32buffer output

frac32.u.map shape parameter

frac32.s.map "rule" for m parameter in chained units

frac32.s.map global feedback

spinner amount of individual waveshaper units chained together

Declaration

```
// see init code for some info on the object
// defining some data structures and functions for the object. Hackable.
typedef struct {
int32_t k0 = 0;
int32_t k1 = 0;
int32_t k2 = 0;
int32_t k0_2 = 0;
int32_t k1_4 = 0;
int32_t k2_6 = 0;
int32_t mul = 0;
} wavefolder_coefs;
typedef struct {
int32_t x_old = 0;
int32_t Y_old = 0;
} wavefolder_state;
void wavefolder_setcoefs(wavefolder_state *state, wavefolder_coefs *coefs,
int32_t m) {
// k in Q25 format. This way i can go up to k = 64 (massive wavefolding)
int32_t k0 = m;
int32_t k1 = 83886080 - (k0 << 1); ////// 5/2 -2k0
int32_t k2 = k0 - 50331648; /// k0 -3/2
int32_t k0_2 = k0 >> 1;
int32_t k1_4 = k1 >> 2;
int32_t k2_6 = k2 / 6;
int32_t max = 1 << 22;
int32_t kdiff = k0 - 62914560; // 15/8 in Q25 format
if (kdiff > 0) {
max = ___SMMLA(18770000 << 3, kdiff, max);
}
int32_t mul = 2147483647.f * 4194304.f / ((float)max); // Q31
// 2^27 = 134217728
(coefs->k0) = k0;
(coefs->k1) = k1;
(coefs->k2) = k2;
(coefs->k0_2) = k0_2;
(coefs->k1_4) = k1_4;
(coefs->k2_6) = k2_6;
(coefs->mul) = mul;
int32_t x_old = (state->x_old);
int32_t x1 = x_old;
int32_t x2 = ___SMMUL(x1 << 2, x1 << 3);
int32_t x4 = ___SMMUL(x2 << 2, x2 << 3);
int32_t x6 = ___SMMUL(x2 << 2, x4 << 3);
// x_n are in Q27 format. k_m are in Q25 format. I want to come out in Q24
// format
int32_t Y =
___SMMUL(x2 << 3, k0_2) + ___SMMUL(x4 << 3, k1_4) +
___SMMUL(x6 << 3, k2_6); // 0.5*k0*x2 + 0.25*k1*x4 + 1.f/6.f*k2*x6;
(state->Y_old) = Y;
}
int32_t wavefolder_process(wavefolder_state *state, wavefolder_coefs *coefs,
int32_t input_Q27) {
int32_t x1 = __SSAT(input_Q27, 28);
int32_t x2 = ___SMMUL(x1 << 2, x1 << 3);
int32_t x3 = ___SMMUL(x1 << 2, x2 << 3);
int32_t x4 = ___SMMUL(x1 << 2, x3 << 3);
int32_t x5 = ___SMMUL(x1 << 2, x4 << 3);
int32_t x6 = ___SMMUL(x1 << 2, x5 << 3);
int32_t k0 = (coefs->k0);
int32_t k1 = (coefs->k1);
int32_t k2 = (coefs->k2);
int32_t k0_2 = (coefs->k0_2);
int32_t k1_4 = (coefs->k1_4);
int32_t k2_6 = (coefs->k2_6);
int32_t mul = (coefs->mul);
int32_t x_old = (state->x_old);
int32_t Y_old = (state->Y_old);
// x_n are in Q27 format. k_m are in Q25 format. I want to come out in Q24
// format
int32_t y = ___SMMUL(x1 << 3, k0) + ___SMMUL(x3 << 3, k1) +
___SMMUL(x5 << 3, k2); // x1*k0 + x3*k1 + x5*k2;
int32_t Y =
___SMMUL(x2 << 3, k0_2) + ___SMMUL(x4 << 3, k1_4) +
___SMMUL(x6 << 3, k2_6); // 0.5*k0*x2 + 0.25*k1*x4 + 1.f/6.f*k2*x6;
int32_t dx = x1 - x_old;
int32_t dY = Y - Y_old;
int32_t dx_abs = dx > 0 ? dx : -dx;
(state->Y_old) = Y;
(state->x_old) = x1;
int32_t dY_dx = dY * 134217728.0f / ((float)dx);
int32_t out;
if (dx_abs > 1 << 8)
out = ___SMMUL(dY_dx << 2, mul) << 3;
else
out = ___SMMUL(y << 2, mul) << 3;
return out;
}
wavefolder_coefs wf_c[attr_chain];
wavefolder_state wf_s[attr_chain];
int32_t buffer[attr_chain + 1];
```

Init

```
/*
* Hey, it's me, Sputnki. If you're reading this, it means you're interested in
* hacking this object: I'm totally not okay with that, go away. Really. Don't
* even try to hack this object, because it's copyrighted in Italy under
* Waveshaper Act, art.11 . I mean it. Go steal someone else's work.
*
* Still here?
*
* Ok, so here's how it works:
*
* This object is no more than a polynomial waveshaper. The function i'm using
* is y = ax + bx^3 + cx^5 The implementation is in fixed point format (i
* started with floating point, but it was 10x more cpu intensive. I used
* several fixed point formats, it was a big trial and error process until i got
* a decent result. The object also uses pre integration as a way to reduce
* aliasing (it's a big topic and you should read Thierry Rochebois articles,
* they're very didactic in this sense.
*
*
* How are coefficients calculated? Why a 5th order polynomial?
*
* y = k0x + k1x^3 + k2x^5
*
* The user is allowed to operate on the "k0" coefficient, that represents the
* angular coefficient at x=0 I want the function to output 1 (or -1) when the
* input is 1 (or -1) (normalized, ofc) I want the derivative to be 0 when the
* input is 1 or -1
*
* Solving this system of equations gives k1 = 5/2 - 2k0
* and k2 = k0 - 3/2
*
* I also wish to have a function that stays bound inside -1 , 1 when the input
* is inside -1 , 1 Unfortunately i don't have any more degrees of freedom to
* work on. Doing some clever math i've calculated the range of k0 in which
* y=f(k0,x) satisfies the condition That range is k = [0,15/8]
*
* (if you want to know how i got that number: i calculated y = f'(x)
* (derivative). The points of local maximum will have f'(x) = 0. That's a 4th
* order polynomial, there's not a formula to calculate roots of 4th order
* polynomial. But since i defined the function this way, i know that
* (x-1),(x+1) are two roots for the polynomial. I divided f'(x)/(x-1)(x+1) in
* wolfram alpha and found a 2nd order polynomial. Again, setting such
* polynomial to 0 (in wolfram alpha) allowed me to find the values of x that
* satisfied the condition of local maximum. xmax = g(k0) should be >1 in order
* to keep the function bound in the -1 , 1 range.
*
* The waveshaper limited to such range sounded pretty dull. So, again, i
* calculated the value of f(x) at x=xmax, as a function of k. This function is
* pretty nonlinear, as it's a rational function with square roots and stuff.
* However, luckily, it can be approximated as h = ax.
*
* I should say more about the object, but i seriously doubt people will read
* this. Farewell.
*/
```

Control Rate

```
int32_t feed = __SSAT(param_feed + inlet_feed, 28);
int32_t chain = param_chain + inlet_chain;
for (int i = 0; i < attr_chain; i++)
wavefolder_setcoefs(&wf_s[i], &wf_c[i],
__USAT(param_m + inlet_m + (i * (chain / attr_chain)), 27)
<< 3);
```

Audio Rate

```
buffer[0] = inlet_in + ___SMMUL(feed << 2, buffer[attr_chain] << 3);
for (int i = 0; i < attr_chain; i++)
buffer[i + 1] = wavefolder_process(&wf_s[i], &wf_c[i], buffer[i]);
outlet_out = buffer[attr_chain];
```
