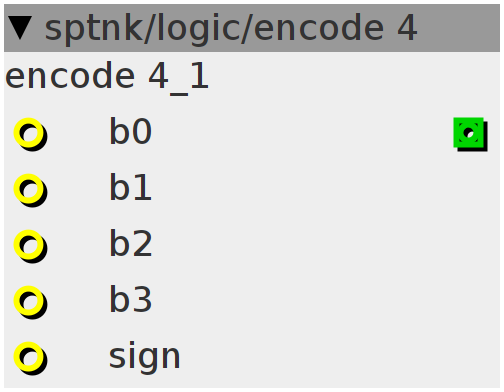

encode 4
binary encoder (4 bit plus sign)
Inlets
bool32 bit 0 LSB
bool32 bit 1
bool32 bit 2
bool32 bit 3 MSB
bool32 sign bit
Outlets
int32 output
Declaration
int i_out;
Control Rate
i_out = inlet_b0 * 1 + inlet_b1 * 2 + inlet_b2 * 4 + inlet_b3 * 8;
if (inlet_sign == 1)
i_out = -1 - i_out;
outlet_out = i_out;
