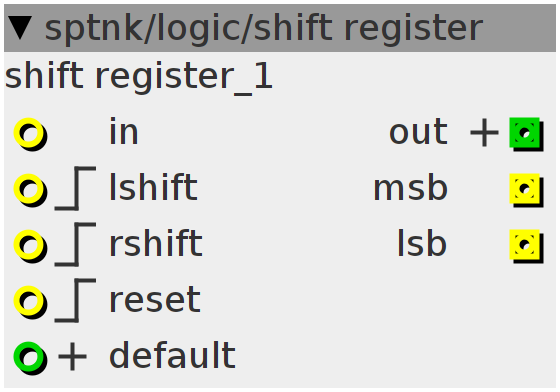

shift register
Shift register. It can do SISO and SIPO. Also, it is possible to reset to a default register
Inlets
int32.positive default value used in reset
bool32 input
bool32.rising shift the register 1 bit left and add the input to the lsb (far right)
bool32.rising shift the register 1 bit right and add the input to the msb (far left)
bool32.rising reset the shift register to the default value
Outlets
bool32 most significant bit of the shift register
bool32 least significant bit of the shift register
int32.positive parallel output of the shift register
bool strig;
bool rtrig;
uint32_t reg;
// these constants are used when shifting
uint32_t msb = (1 << 31);
uint32_t lsb = 1;reg = 0;if (inlet_reset && !rtrig) // resetting to default value
{
reg = inlet_default;
rtrig = 1;
} else if (!inlet_reset) {
rtrig = 0;
}
if (inlet_lshift && !strig) // shifting left
{
reg = (reg << 1) | (inlet_in);
strig = 1;
} else if (inlet_rshift && !strig) // shifting right
{
reg = (reg >> 1) | ((inlet_in << 31));
strig = 1;
} else if (!inlet_lshift && !inlet_rshift) {
strig = 0;
}
outlet_out = reg;
outlet_msb = reg & msb;
outlet_lsb = reg & lsb;
