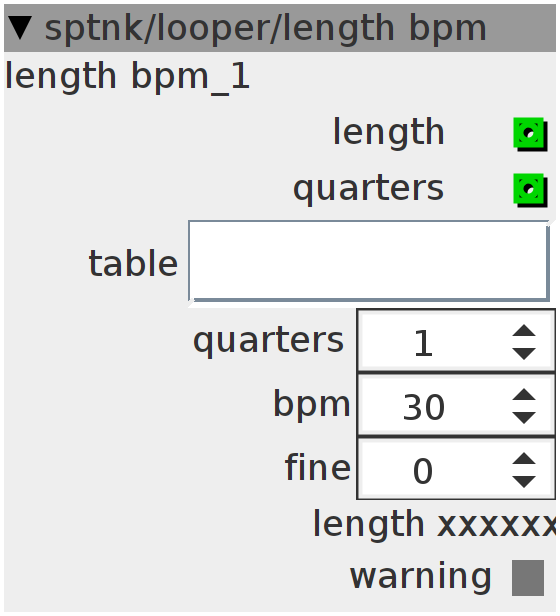

length bpm
This object provides a length for the looper/pos object. Allows to use the looper in a kaoss pad / kaossilator fashion.
Inlets
None
Outlets
int32 provides an endpos value for looper/pos object
int32 quarters outlet (for click generation purposes)
Parameters
int32 length in quarters of the loop
int32 speed in bpm (coarse)
int32.mini fine adjustement for bpm speed
Attributes
objref 32b table in which the 4 tracks are stored
Displays
int32.label displays the length in seconds of the specified loop
bool32 endpos exceeds the size of the table
float length = 288000000.0f * param_quarters /
(100 * param_bpm + param_fine); // f(bpm v, fcamp ^, nbeats ^)
disp_length = length / 48000.0f;
if (length > attr_table.LENGTHMASK)
disp_warning = 1;
else
disp_warning = 0;
outlet_length = length;
outlet_quarters = param_quarters;
