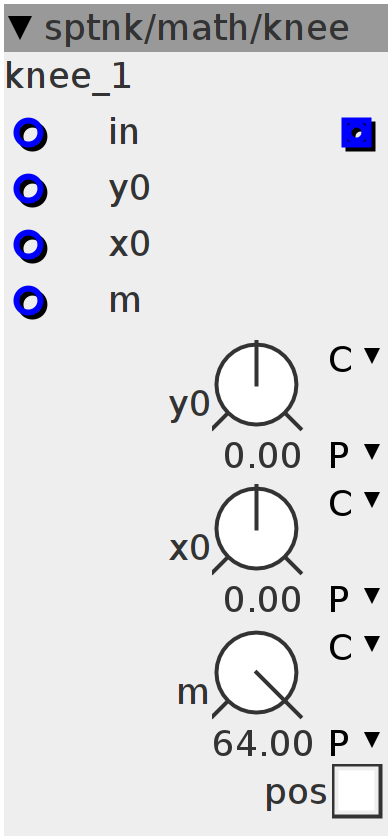

knee
Knee shape.
Inlets
frac32 in
frac32 ouput offset
frac32 x position in which the knee happens
frac32 angular coefficient of the knee
Outlets
frac32 out
Parameters
frac32.s.map output offset
frac32.s.map x position in which the knee happens
frac32.s.map angular coefficient of the knee
bool32.tgl off: \_ - on: _/
int32_t y0 = inlet_y0 + param_y0;
int32_t x0 = inlet_x0 + param_x0;
int32_t m = inlet_m + param_m;
int32_t x = inlet_in - x0;
int32_t y = ___SMMLA(x << 2, m << 3, y0);
if ((param_pos ? -x : x) > 0)
outlet_out = y0;
else
outlet_out = y;
