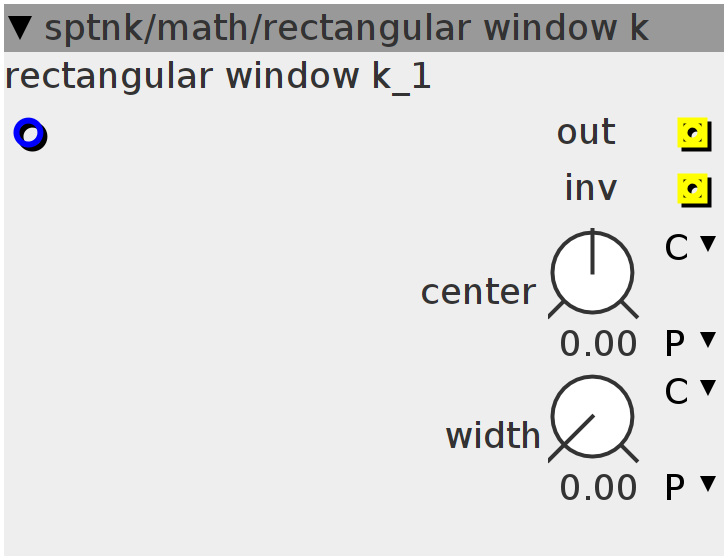

rectangular window k
Rectangular window, with variable center and width
Inlets
frac32 in
Outlets
bool32 out
bool32 inverted output
Parameters
frac32.u.map width
frac32.s.map center
Declaration
int32_t center;
int32_t width;
bool o;
Control Rate
center = param_center;
width = param_width;
if (inlet_in > center - width && inlet_in < center + width)
o = 1;
else
o = 0;
outlet_out = o;
outlet_inv = !o;
