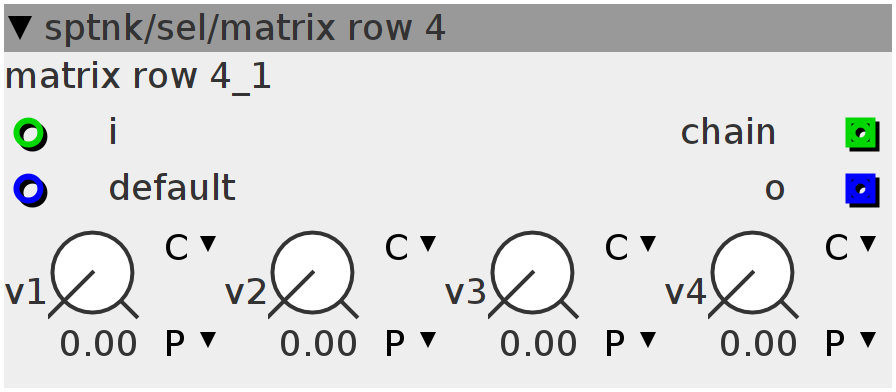

matrix row 4
selectable constant. Output is v1 if i=0, v2 if i=1, v3 if i=2, v4 if i=3. Chainable, created to be used in conjunction with 4op fm object
Inlets
int32 select
frac32 default
Outlets
frac32 output
int32 chain
Parameters
frac32.u.map v1
frac32.u.map v2
frac32.u.map v3
frac32.u.map v4
switch (inlet_i) {
case 0:
outlet_o = param_v1;
break;
case 1:
outlet_o = param_v2;
break;
case 2:
outlet_o = param_v3;
break;
case 3:
outlet_o = param_v4;
break;
default:
outlet_o = inlet_default;
break;
}
outlet_chain = inlet_i - 4;
