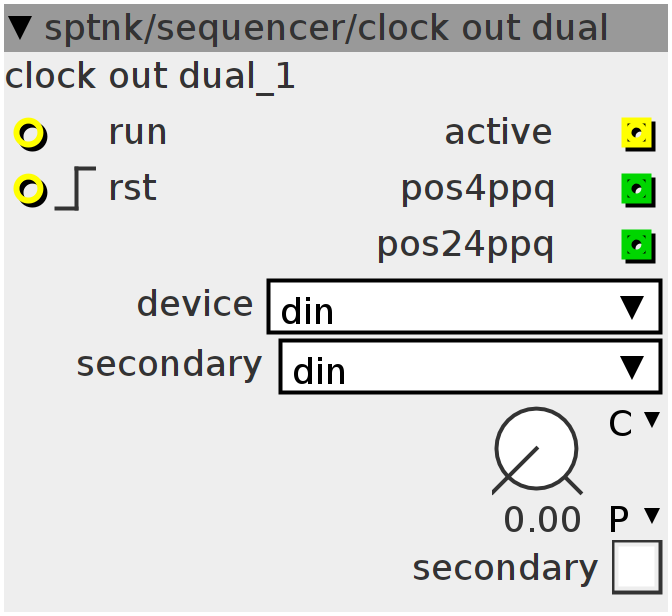

clock out dual
Midi clock master, also outputs Midi clock, start, stop, and continue messages on two separate Midi devices. The secondary device can be switched on or off (when off, the behavior is identical to the midi/out/clock by Johannes. Based on midi/out/clock by Johannes Taelman.
Inlets
bool32 Run
bool32.rising Reset
Outlets
bool32 Song is playing
int32 Position in 4 counts per quarter
int32 Position in 24 counts per quarter
Parameters
bool32.tgl secondary
frac32.u.map bpm
Attributes
combo device
combo secondary
bool _active;
int32_t _posfrac;
int32_t _pos24ppq;
bool rstp;_active = 0;
_posfrac = 0;
_pos24ppq = 0;
rstp = 0;if (inlet_rst & !rstp) {
rstp = 1;
_posfrac = 0;
_pos24ppq = 0;
} else if (!inlet_rst) {
rstp = 0;
}
if (inlet_run && !_active) {
_active = 1;
if (_pos24ppq) {
MidiSend1((midi_device_t)attr_device, MIDI_CONTINUE);
if (param_secondary)
MidiSend1((midi_device_t)attr_secondary, MIDI_CONTINUE);
} else {
MidiSend1((midi_device_t)attr_device, MIDI_START);
if (param_secondary)
MidiSend1((midi_device_t)attr_secondary, MIDI_START);
}
} else if (!inlet_run && _active) {
_active = 0;
MidiSend1((midi_device_t)attr_device, MIDI_STOP);
if (param_secondary)
MidiSend1((midi_device_t)attr_secondary, MIDI_STOP);
}
if (_active) {
_posfrac += param_bpm;
if (_posfrac & 1 << 31) {
_posfrac &= (1 << 31) - 1;
_pos24ppq++;
MidiSend1((midi_device_t)attr_device, MIDI_TIMING_CLOCK);
if (param_secondary)
MidiSend1((midi_device_t)attr_secondary, MIDI_TIMING_CLOCK);
}
}
outlet_pos4ppq = _pos24ppq / 6;
outlet_pos24ppq = _pos24ppq;
