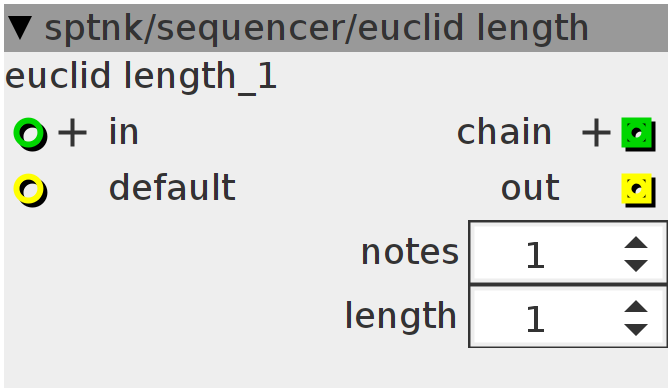

euclid length
Euclidean rhythm generator. Chainable. Notes specifics the number of active steps, length the number of steps of the sequence. Inlet in specifics what step to read, like sel i 16/32 or disp/ibar . If outside the range the default inlet will be outputted (like said objects). Dynamic algorithm, 10% dsp load worst case with 63 notes and 64 rests.
Inlets
int32.positive step select
bool32 default
Outlets
int32.positive chain output
bool32 bool out
Parameters
int32 notes
int32 length
Declaration
bool sequence[128];
Control Rate
int notes = param_notes;
if (notes > param_length)
notes = param_length;
int rests = param_length - notes;
outlet_chain = inlet_in - param_length;
if (rests) {
if (notes < rests) {
int mul = rests / notes;
int rem = rests - (mul * notes);
int ii = 0;
int temp;
for (int i = 0; i < notes; i += 1) {
if (i < rem) {
temp = ii;
sequence[ii] = 1;
for (ii = temp + 1; ii < temp + mul + 2; ii += 1)
sequence[ii] = 0;
} else {
temp = ii;
sequence[ii] = 1;
for (ii = temp + 1; ii < temp + mul + 1; ii += 1)
sequence[ii] = 0;
}
}
} else if (notes > rests) {
int mul = notes / rests;
int rem = notes - (mul * rests);
int ii = 0;
int temp;
for (int i = 0; i < rests; i += 1) {
if (i < rem) {
sequence[ii] = 1;
ii += 1;
sequence[ii] = 0;
temp = ii;
for (ii = temp + 1; ii < temp + mul + 1; ii += 1)
sequence[ii] = 1;
} else {
sequence[ii] = 1;
ii += 1;
sequence[ii] = 0;
temp = ii;
for (ii = temp + 1; ii < temp + mul; ii += 1)
sequence[ii] = 1;
}
}
} else {
sequence[0] = 1;
for (int i = 1; i < param_length; i += 1)
sequence[i] = !sequence[i - 1];
}
} else {
for (int ii = 0; ii < param_length; ii += 1)
sequence[ii] = 1;
}
if (inlet_in >= 0 && inlet_in < param_length)
outlet_out = sequence[inlet_in];
else
outlet_out = inlet_default;
