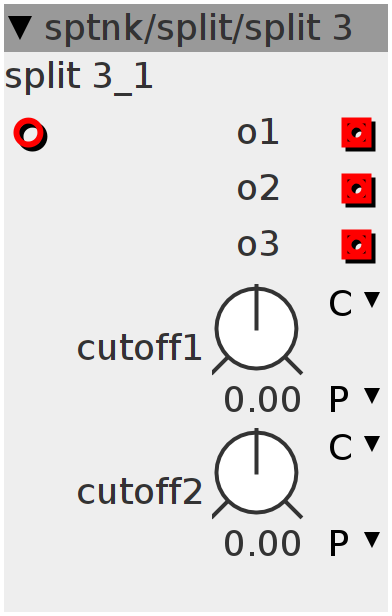

split 3
Split the incoming signal in three, based on the amplitude.
Inlets
frac32buffer in
Outlets
frac32buffer o1
frac32buffer o2
frac32buffer o3
Parameters
frac32.s.map cutoff1
frac32.s.map cutoff2
Declaration
int32_t center1;
int32_t center2;
int32_t width;
int32_t o1;
int32_t o2;
int32_t o3;
Control Rate
center1 = param_cutoff1;
center2 = param_cutoff2;
Audio Rate
if (center1 < center2) {
if (inlet_in < center1) {
o1 = inlet_in;
o2 = 0;
o3 = 0;
} else if (inlet_in > center2) {
o1 = 0;
o2 = 0;
o3 = inlet_in;
} else {
o1 = 0;
o2 = inlet_in;
o3 = 0;
}
} else if (center1 > center2) {
if (inlet_in < center2) {
o1 = inlet_in;
o2 = 0;
o3 = 0;
} else if (inlet_in > center1) {
o1 = 0;
o2 = 0;
o3 = inlet_in;
} else {
o1 = 0;
o2 = inlet_in;
o3 = 0;
}
} else {
if (inlet_in < center1) {
o1 = inlet_in;
o2 = 0;
o3 = 0;
} else if (inlet_in > center1) {
o1 = 0;
o2 = 0;
o3 = inlet_in;
}
}
outlet_o1 = o1;
outlet_o2 = o2;
outlet_o3 = o3;
