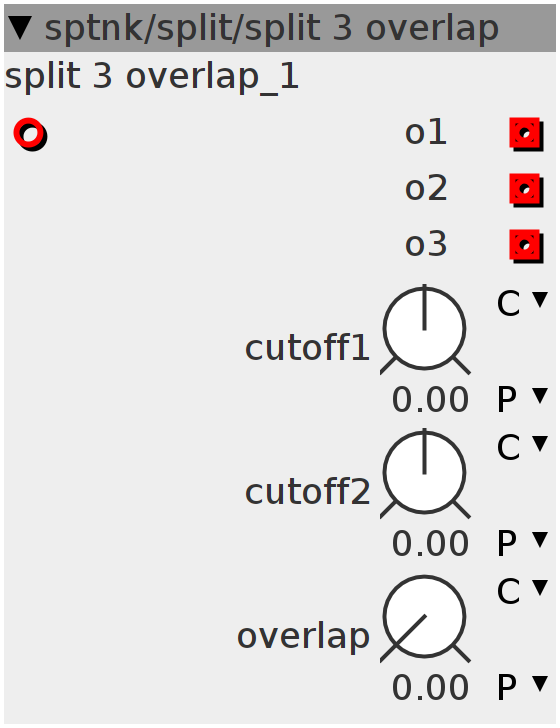

split 3 overlap
Split the incoming signal in three, based on the amplitude, with hard overlap.
Inlets
frac32buffer in
Outlets
frac32buffer o1
frac32buffer o2
frac32buffer o3
Parameters
frac32.s.map cutoff1
frac32.s.map cutoff2
frac32.u.map overlap
Declaration
int32_t center1;
int32_t center2;
int32_t width;
int32_t o1;
int32_t o2;
int32_t o3;
Control Rate
center1 = param_cutoff1;
center2 = param_cutoff2;
width = param_overlap;
Audio Rate
if (center1 < center2) {
if (inlet_in < center1 - width) {
o1 = inlet_in;
o2 = 0;
o3 = 0;
} else if (inlet_in > center2 + width) {
o1 = 0;
o2 = 0;
o3 = inlet_in;
} else if (inlet_in < center1 + width) {
o1 = inlet_in;
o2 = inlet_in;
o3 = 0;
} else if (inlet_in > center2 - width) {
o1 = 0;
o2 = inlet_in;
o3 = inlet_in;
} else {
o1 = 0;
o2 = inlet_in;
o3 = 0;
}
} else if (center1 > center2) {
if (inlet_in < center2 - width) {
o1 = inlet_in;
o2 = 0;
o3 = 0;
} else if (inlet_in > center1 + width) {
o1 = 0;
o2 = 0;
o3 = inlet_in;
} else if (inlet_in < center2 + width) {
o1 = inlet_in;
o2 = inlet_in;
o3 = 0;
} else if (inlet_in > center1 - width) {
o1 = 0;
o2 = inlet_in;
o3 = inlet_in;
} else {
o1 = 0;
o2 = inlet_in;
o3 = 0;
}
} else {
if (inlet_in < center1 - width) {
o1 = inlet_in;
o2 = 0;
o3 = 0;
} else if (inlet_in > center1 + width) {
o1 = 0;
o2 = 0;
o3 = inlet_in;
} else {
o1 = inlet_in;
o2 = inlet_in;
o3 = inlet_in;
}
}
outlet_o1 = o1;
outlet_o2 = o2;
outlet_o3 = o3;
