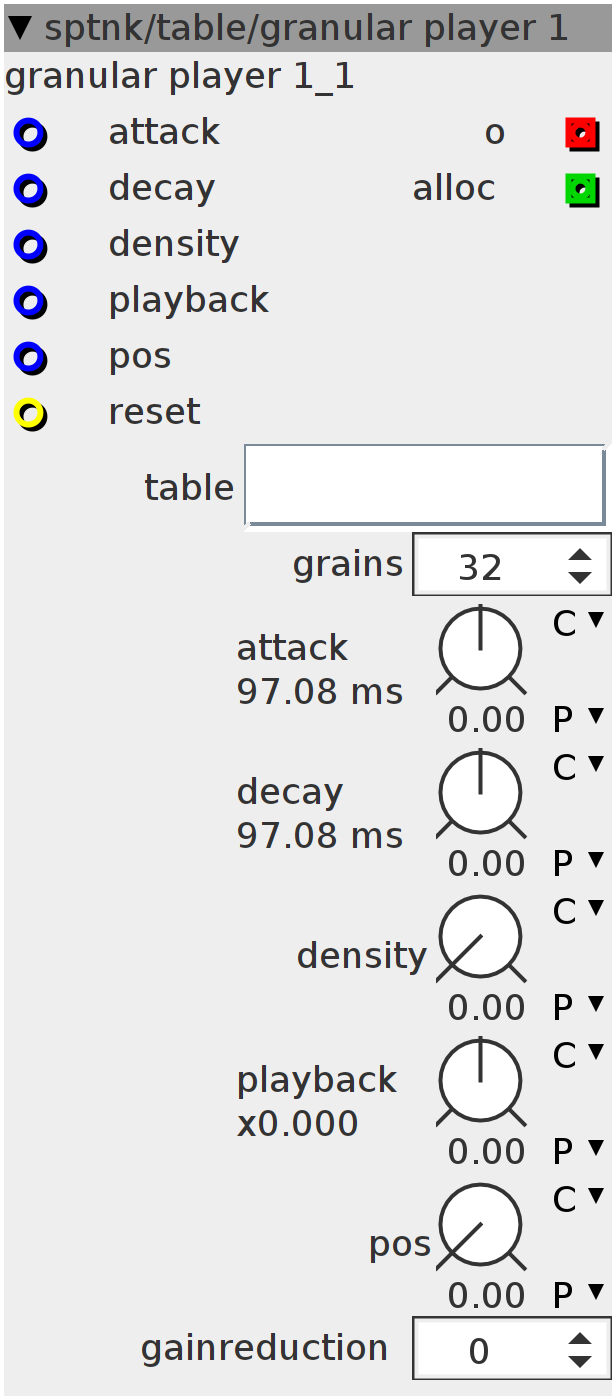

granular player 1

$\text{[math]}$

Very basic (and inefficient and cheap) granular player. Dynamic DSP load (increases with attack, decay and density parameters) Reads a table specified in attribute table with a fixed maximum number of grains. Use green outlet for debug.

Author: Sputnki

License: BSD

Github: sptnk/table/granular player 1.axo

Inlets

frac32 modulation inlet for attack parameter

frac32 modulation inlet for decay parameter

frac32 modulation inlet for density parameter

frac32 modulation inlet for playback parameter

frac32 modulation inlet for pos parameter

bool32 hard retrig for a new grain

Outlets

int32 number of active grains (use for debug)

frac32buffer audio out

Parameters

frac32.s.map.klineartime.exp set the attack length for a grain

frac32.s.map.klineartime.exp set the decay length for a grain

frac32.u.map how many grains per second are played (not in natural units)

frac32.u.map position in the table from where to read audio

frac32.s.map.ratio playback speed for grains.0=stop; +64 = normal speed; -64 reverse playback. For faster tempos use mod inlet

int32 useful in case many grains are played

Attributes

spinner maximum number of allocated grains

objref name of the table object to granulize

Declaration

bool grain_active[attr_grains];
uint32_t grain_amp[attr_grains];
uint32_t grain_phase[attr_grains];

uint32_t global_phase;
uint32_t global_phase_old;

uint32_t grain_num = 0;

uint32_t temp_32;

uint32_t freq;

uint32_t global_attack;
uint32_t global_decay;

uint32_t pitchmul =
    66000 *
    ((1 << 27) / attr_table.LENGTH); // this coefficient should be adjusted
                                     // (const*48000*2^27 / LENGTH)

bool rtrig;

Control Rate

bool dostuff = 0;
if (inlet_reset && !rtrig) {
  global_phase_old = 0;
  global_phase = 0;
  dostuff = 1;
  rtrig = 1;

} else {
  if (!inlet_reset)
    rtrig = 0;

  global_phase += param_density + inlet_density;
  if (global_phase < global_phase_old) // time to activate another grain
    dostuff = 1;
  global_phase_old = global_phase;
}

MTOF(-param_attack - inlet_attack, global_attack);
MTOF(-param_decay - inlet_decay, global_decay);

freq = ___SMMUL(param_playback + inlet_playback >> 11, pitchmul);

if (dostuff) {
  grain_num++;
  if (grain_num >= attr_grains)
    grain_num = 0;

  grain_amp[grain_num] = 0;
  grain_active[grain_num] = 1;
  grain_phase[grain_num] = param_pos + inlet_pos;
}

Audio Rate

int32_t accum = 0;
int voicealloc = 0;
for (int i = 0; i < attr_grains; i++) {

  if (grain_active[i]) // if in attack phase (active)
  {
    temp_32 = grain_amp[i] + (global_attack >> 5);
    if (temp_32 > grain_amp[i])
      grain_amp[i] = temp_32;
    else
      grain_active[i] = 0;

    accum += ___SMMUL(attr_table.array[__USAT(grain_phase[i], 27) >>
                                       (27 - attr_table.LENGTHPOW)]
                          << attr_table.GAIN,
                      grain_amp[i] >> 1) >>
             param_gainreduction;

    grain_phase[i] += freq;
    voicealloc++;
  } else if (grain_amp[i]) // not active but in decay phase
  {
    temp_32 = grain_amp[i] - (global_decay >> 5);
    if (temp_32 < grain_amp[i])
      grain_amp[i] = temp_32;
    else
      grain_amp[i] = 0;

    accum += ___SMMUL(attr_table.array[__USAT(grain_phase[i], 27) >>
                                       (27 - attr_table.LENGTHPOW)]
                          << attr_table.GAIN,
                      grain_amp[i] >> 1) >>
             param_gainreduction;
    grain_phase[i] += freq;
    voicealloc++;
  }
}

outlet_o = accum;
outlet_alloc = voicealloc;
