glitch
chorus effect from the rings dsp code open sourced by mutable instruments. any bugs/issues you find are our own, report on the axoloti forum. Thanks to Olivier Gillet from Mutable Instruments for open sourcing their code. http://mutable-instruments.com

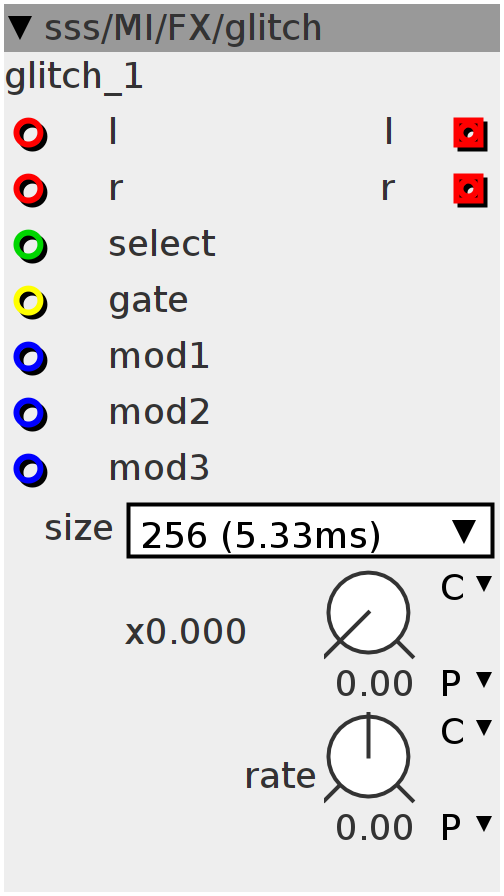

Inlets
int32 select
bool32 gate
frac32 mod1
frac32 mod2
frac32 mod3
frac32buffer l
frac32buffer r
Outlets
frac32buffer l
frac32buffer r
Parameters
frac32.s.map rate
frac32.u.map.gain mix
Attributes
combo size
Declaration
rings_fx::Chorus chorus;
rings_fx::Reverb reverb;
static const uint32_t LENGTHPOW = (attr_size);
static const uint32_t LENGTH = (1 << attr_size);
static const uint32_t LENGTHMASK = ((1 << attr_size) - 1);
int16_t *a1;
int16_t *a2;
int16_t *a3;
int16_t *a4;
uint32_t writepos, wp;
uint32_t phs;
int32_t TM1, TM2, FD, f1, f2, prv1, prv2, stp1, stp2, T1, T2, fd1[BUFSIZE],
fd2[BUFSIZE], mod1, mod2, mod3;
int32_t L[BUFSIZE], R[BUFSIZE];
int32_t hp1, hp2, hp3, hp4, lp[2], LP[2];
int i;
int SL, sel;
bool trg, gate;
int32_t Chorus(int32_t m1, int32_t m2, int32_t m3) {
static float left[BUFSIZE];
static float right[BUFSIZE];
chorus.set_amount(q27_to_float(m1));
chorus.set_depth(q27_to_float(m2));
m3 -= (1 << 26);
m3 = m3 >> LENGTHPOW - 3;
if (m3 > 0) {
m1 = (m3 >> 27 - LENGTHPOW) + BUFSIZE + 1;
m2 = BUFSIZE + 1;
} else {
m1 = BUFSIZE + 1;
m2 = (-m3 >> 27 - LENGTHPOW) + BUFSIZE + 1;
}
for (i = 0; i < BUFSIZE; i++) {
left[i] = q27_to_float(a1[(writepos - m1 + i) & LENGTHMASK] << 14);
right[i] = q27_to_float(a2[(writepos - m2 + i) & LENGTHMASK] << 14);
}
chorus.Process(left, right, BUFSIZE);
for (i = 0; i < BUFSIZE; i++) {
L[i] = (float_to_q27(left[i]));
R[i] = (float_to_q27(right[i]));
}
};
int32_t Reverb(int32_t m1, int32_t m2, int32_t m3) {
static float left[BUFSIZE];
static float right[BUFSIZE];
reverb.set_amount(q27_to_float(m1));
reverb.set_input_gain(q27_to_float((2 << 24)));
reverb.set_time(q27_to_float(m2));
reverb.set_diffusion(q27_to_float((7 << 24)));
reverb.set_lp(q27_to_float((m3)));
for (i = 0; i < BUFSIZE; i++) {
left[i] = q27_to_float(L[i]);
right[i] = q27_to_float(R[i]);
}
reverb.Process(left, right, BUFSIZE);
for (i = 0; i < BUFSIZE; i++) {
L[i] = (float_to_q27(left[i]));
R[i] = (float_to_q27(right[i]));
}
}
int32_t RT;
int32_t Retrig(int32_t m1, int32_t m2, int32_t m3) {
int32_t mx;
int32_t N[2] = {0, 4};
int32_t stp, oct;
stp = m2 >> 23;
oct = stp >> 1;
stp = stp & 1;
MTOF(((-N[stp] - oct * 12) << 21) - RT, m2)
m2 = m2 >> 27 - LENGTHPOW;
int stack;
int32_t mix;
stack = m3 >> 24;
mix = m3 - (stack << 24) << 7;
stack += 1;
for (i = 0; i < BUFSIZE; i++) {
int32_t tmp1, tmp2;
for (int k = 0; k < stack; k++) {
tmp1 =
___SMMUL(a1[(writepos - BUFSIZE + i - k * m2) & LENGTHMASK] << 14, m1)
<< 5;
tmp2 =
___SMMUL(a2[(writepos - BUFSIZE + i - k * m2) & LENGTHMASK] << 14, m1)
<< 5;
if (k < (stack - 1)) {
L[i] = __SSAT(tmp1 + L[i], 28);
R[i] = __SSAT(tmp2 + R[i], 28);
} else {
L[i] = __SSAT(___SMMUL(mix, tmp1 << 1) + L[i], 28);
R[i] = __SSAT(___SMMUL(mix, tmp2 << 1) + R[i], 28);
}
}
}
};
int32_t Phaser(int32_t m1, int32_t m2, int32_t m3) {
MTOF((1 << 27) - (m2 << 1), TM1)
TM1 = TM1 >> 1;
int32_t Pshift = __SSAT(m3 - (1 << 26) << 1, 28);
Pshift = (___SMMUL(Pshift, TM1) << 5);
TM2 = __USAT(TM1 + Pshift, 27);
TM1 = __USAT(TM1 - Pshift, 27);
stp1 = TM1 - prv1 >> 4;
T1 = prv1;
prv1 = TM1;
stp2 = TM2 - prv2 >> 4;
T2 = prv2;
prv2 = TM2;
FD = m1;
for (i = 0; i < BUFSIZE; i++) {
int32_t pos = (writepos - BUFSIZE + i) & LENGTHMASK;
a1[pos] = __SSAT(a1[pos] + (f2 >> 14), 15);
a2[pos] = __SSAT(a2[pos] + (f1 >> 14), 15);
uint32_t tmp_di = pos - (T1 >> (27 - LENGTHPOW)) - 1;
uint32_t tmp_w1 = (T1 << (LENGTHPOW + 3)) & 0x3FFFFFFF;
uint32_t tmp_w2 = (1 << 30) - tmp_w1;
int32_t tmp_a1 = a1[tmp_di & LENGTHMASK] << 16;
int32_t tmp_a2 = a1[(tmp_di + 1) & LENGTHMASK] << 16;
int32_t tmp_r = ___SMMUL(tmp_a1, tmp_w1);
f1 = ___SMMLA(tmp_a2, tmp_w2, tmp_r);
tmp_di = pos - (T2 >> (27 - LENGTHPOW)) - 1;
tmp_w1 = (T2 << (LENGTHPOW + 3)) & 0x3FFFFFFF;
tmp_w2 = (1 << 30) - tmp_w1;
tmp_a1 = a2[tmp_di & LENGTHMASK] << 16;
tmp_a2 = a2[(tmp_di + 1) & LENGTHMASK] << 16;
tmp_r = ___SMMUL(tmp_a1, tmp_w1);
f2 = ___SMMLA(tmp_a2, tmp_w2, tmp_r);
f1 = ___SMMUL(FD, f1) << 5;
f2 = ___SMMUL(FD, f2) << 5;
L[i] += f1;
R[i] += f2;
T1 += stp1;
T2 += stp2;
}
}
int32_t Timemod(int32_t m1, int32_t m2, int32_t m3) {
MTOF(-(1 << 27) - (m2 << 1), TM1)
TM1 = TM1 >> 1;
int32_t Pshift = __SSAT(m3 - (1 << 26) << 1, 28);
Pshift = (___SMMUL(Pshift, TM1) << 5);
TM2 = __USAT(TM1 + Pshift, 27);
TM1 = __USAT(TM1 - Pshift, 27);
stp1 = TM1 - prv1 >> 4;
T1 = prv1;
prv1 = TM1;
stp2 = TM2 - prv2 >> 4;
T2 = prv2;
prv2 = TM2;
MTOFEXTENDED(-(1 << 27) + m1, m1)
m1 = m1 >> 4;
for (i = 0; i < BUFSIZE; i++) {
uint32_t pos = (writepos - BUFSIZE + i) & LENGTHMASK;
phs += m1;
int32_t sine, t1, t2;
SINE2TINTERP(phs, sine)
sine = (sine >> 1) + (1 << 30);
t1 = ___SMMUL(T1, sine) << 1;
SINE2TINTERP(phs + (1 << 31), sine)
sine = (sine >> 1) + (1 << 30);
t2 = ___SMMUL(T2, sine) << 1;
int32_t LP = LENGTHPOW;
uint32_t tmp_di = pos - (t1 >> (27 - LP));
uint32_t tmp_w1 = (t1 << (LP + 3)) & 0x3FFFFFFF;
uint32_t tmp_w2 = (1 << 30) - tmp_w1;
int32_t tmp_a1 = a1[tmp_di & LENGTHMASK] << 16;
int32_t tmp_a2 = a1[(tmp_di + 1) & LENGTHMASK] << 16;
int32_t tmp_r = ___SMMUL(tmp_a1, tmp_w1);
f1 = ___SMMLA(tmp_a2, tmp_w2, tmp_r);
tmp_di = pos - (t2 >> (27 - LP));
tmp_w1 = (t2 << (LP + 3)) & 0x3FFFFFFF;
tmp_w2 = (1 << 30) - tmp_w1;
tmp_a1 = a2[tmp_di & LENGTHMASK] << 16;
tmp_a2 = a2[(tmp_di + 1) & LENGTHMASK] << 16;
tmp_r = ___SMMUL(tmp_a1, tmp_w1);
f2 = ___SMMLA(tmp_a2, tmp_w2, tmp_r);
L[i] = f1;
R[i] = f2;
T1 += stp1;
T2 += stp2;
}
}
int32_t Graingrap(int32_t m1, int32_t m2, int32_t m3) {
MTOF((m2), TM1)
TM1 = TM1 >> 1;
int32_t Pshift = __SSAT(m3 - (1 << 26) << 1, 28);
Pshift = (___SMMUL(Pshift, TM1) << 5);
TM2 = __USAT(TM1 + Pshift, 27);
TM1 = __USAT(TM1 - Pshift, 27);
stp1 = TM1 - prv1 >> 4;
T1 = prv1;
prv1 = TM1;
stp2 = TM2 - prv2 >> 4;
T2 = prv2;
prv2 = TM2;
m1 = m1 - (1 << 26) >> 2;
bool dir = m1 > 0 ? 1 : 0;
MTOFEXTENDED(-(1 << 26) + (m1 > 0 ? m1 : -m1), m1)
m1 = dir > 0 ? -m1 : m1;
m1 = m1 >> 7;
for (i = 0; i < BUFSIZE; i++) {
uint32_t pos = (writepos - BUFSIZE + (sel == 5 ? i : 0)) & LENGTHMASK;
phs += m1;
int32_t sine, t1, t2;
uint32_t ps = phs >> 1;
t1 = ___SMMUL(ps, T1) << 1;
t2 = ___SMMUL(ps, T2) << 1;
int32_t LP = LENGTHPOW;
uint32_t tmp_di = pos - (t1 >> (27 - LP));
uint32_t tmp_w1 = (t1 << (LP + 3)) & 0x3FFFFFFF;
uint32_t tmp_w2 = (1 << 30) - tmp_w1;
int32_t tmp_a1 = a1[tmp_di & LENGTHMASK] << 16;
int32_t tmp_a2 = a1[(tmp_di + 1) & LENGTHMASK] << 16;
int32_t tmp_r = ___SMMUL(tmp_a1, tmp_w1);
f1 = ___SMMLA(tmp_a2, tmp_w2, tmp_r);
tmp_di = pos - (t2 >> (27 - LP));
tmp_w1 = (t2 << (LP + 3)) & 0x3FFFFFFF;
tmp_w2 = (1 << 30) - tmp_w1;
tmp_a1 = a2[tmp_di & LENGTHMASK] << 16;
tmp_a2 = a2[(tmp_di + 1) & LENGTHMASK] << 16;
tmp_r = ___SMMUL(tmp_a1, tmp_w1);
f2 = ___SMMLA(tmp_a2, tmp_w2, tmp_r);
L[i] = f1;
R[i] = f2;
T1 += stp1;
T2 += stp2;
}
};
static const int blepvoices = 8;
int16_t *oscp[2][blepvoices];
int32_t vgain[2][blepvoices];
uint32_t nextvoice[2];
int32_t i0[2];
int32_t in0[2];
int32_t acc[2];
int32_t Sample(int32_t m1, int32_t m2, int32_t m3) {
int j;
int16_t *lastblep = &blept[BLEPSIZE - 1];
MTOFEXTENDED(m1, m1)
MTOF(m2, m2)
MTOF(m3, m3)
for (j = 0; j < BUFSIZE; j++) {
phs += m1;
int32_t IN[2];
IN[0] = L[j];
IN[1] = R[j];
for (int k = 0; k < 2; k++) {
int32_t ps = k & 1 ? -phs : phs;
lp[k] = ___SMMLA(IN[k] - lp[k] << 1, m2, lp[k]);
IN[k] = lp[k];
int i;
int i1 = (ps << 1) >> 6;
if ((i1 > 0) && !(i0[k] > 0)) { // dispatch
nextvoice[k] = (nextvoice[k] + 1) & (blepvoices - 1);
int32_t x = (i1 << 6) / (i1 - i0[k]);
oscp[k][(nextvoice[k])] = &blept[x];
int32_t val = (((64 - x) * (IN[k] >> 2)) + (x * (in0[k] >> 2))) >> 6;
vgain[k][(nextvoice[k])] = (acc[k] - val) << 2;
acc[k] = val;
}
int32_t sum = 0;
i0[k] = i1;
in0[k] = IN[k];
for (i = 0; i < blepvoices; i++) { // sample
int16_t *t = oscp[k][i];
sum = ___SMMLA((16384 - (*t)) << 16, vgain[k][i], sum);
t += 64;
if (t >= lastblep) {
t = lastblep;
vgain[k][i] = 0;
}
oscp[k][i] = t;
}
IN[k] = (sum + acc[k]) << 1;
LP[k] = ___SMMLA(IN[k] - LP[k] << 1, m3, LP[k]);
IN[k] = __SSAT(LP[k], 26) << 2;
}
L[j] = IN[0];
R[j] = IN[1];
}
};
int32_t s_mid_t1[2][9];
int32_t s_mid_t2[2][9];
int32_t *mid_t1[2];
int32_t *mid_t2[2];
int32_t low[2];
int32_t high[2];
int32_t Frqshift(int32_t m1, int32_t m2, int32_t m3) {
int32_t IN[2];
int32_t rate = m1 - (1 << 26) << 1;
rate = ___SMMUL(m1 << 3, m1 << 2);
rate = ___SMMUL(m1 << 3, rate << 2);
m2 = m2 - (1 << 26) << 5;
for (int i = 0; i < BUFSIZE; i++) {
phs += rate;
int32_t SIN, COS;
SINE2TINTERP(phs, SIN)
SINE2TINTERP(phs + (1 << 30), COS)
IN[0] = L[i] >> 2;
IN[1] = R[i] >> 2;
for (int k = 0; k < 2; k++) {
int32_t in_t1 = IN[k];
int32_t mid0_t = ___SMMLA(0.4794008656 * UINT32_MAX, in_t1 + mid_t2[k][0],
mid_t2[k][8]);
int32_t s1 = mid0_t + mid_t2[k][1];
int32_t mid1_t =
___SMMLS(UINT32_MAX * (1 - 0.8762184935), s1, s1 - mid_t2[k][0]);
int32_t s2 = mid1_t + mid_t2[k][2];
int32_t mid2_t =
___SMMLS(UINT32_MAX * (1 - 0.9765975895), s2, s2 - mid_t2[k][1]);
int32_t s3 = mid2_t + mid_t2[k][6];
int32_t out0_t =
___SMMLS(UINT32_MAX * (1 - 0.9974992559), s3, s3 - mid_t2[k][2]);
int32_t mid3_t = ___SMMLA(0.1617584983 * UINT32_MAX, in_t1 + mid_t2[k][3],
mid_t1[k][8]);
int32_t s4 = mid3_t + mid_t2[k][4];
int32_t mid4_t =
___SMMLS(UINT32_MAX * (1 - 0.7330289323), s4, s4 - mid_t2[k][3]);
int32_t s5 = mid4_t + mid_t2[k][5];
int32_t mid5_t =
___SMMLS(UINT32_MAX * (1 - 0.9453497003), s5, s5 - mid_t2[k][4]);
int32_t s6 = mid5_t + mid_t2[k][7];
int32_t out1_t =
___SMMLS(UINT32_MAX * (1 - 0.9905991567), s6, s6 - mid_t2[k][5]);
// outlet_i = out0_t;
// outlet_q = out1_t;
int32_t t1, t2;
t1 = ___SMMUL(out0_t, SIN) << 5;
t2 = ___SMMUL(out1_t, COS) << 5;
low[k] = t1 + t2 >> 2;
high[k] = t1 - t2 >> 2;
// swap
int32_t *tmp;
tmp = mid_t2[k];
mid_t2[k] = mid_t1[k];
mid_t1[k] = tmp;
mid_t1[k][0] = mid0_t;
mid_t1[k][1] = mid1_t;
mid_t1[k][2] = mid2_t;
mid_t1[k][3] = mid3_t;
mid_t1[k][4] = mid4_t;
mid_t1[k][5] = mid5_t;
mid_t1[k][6] = out0_t;
mid_t1[k][7] = out1_t;
mid_t1[k][8] = -in_t1;
}
int32_t l = low[1] + high[0] + ___SMMUL(-high[0] + low[1] << 1, m2);
int32_t r = low[0] + high[1] + ___SMMUL(high[1] - low[0] << 1, m2);
L[i] = __SSAT((___SMMUL(IN[0], m3) << 5) + (l), 28);
R[i] = __SSAT((___SMMUL(IN[1], m3) << 5) + (r), 28);
}
};
int32_t SEL(int I) {
switch (I) {
case 0:
Chorus(mod1, mod2, mod3);
break;
case 1:
Phaser(mod1, mod2, mod3);
break;
case 2:
Retrig(mod1, mod2, mod3);
break;
case 3:
Reverb(mod1, mod2, mod3);
break;
case 4:
Timemod(mod1, mod2, mod3);
break;
case 5:
Graingrap(mod1, mod2, mod3);
break; // no grab but continuous
case 6:
Graingrap(mod1, mod2, mod3);
break;
case 7:
Sample(mod1, mod2, mod3);
break;
case 8:
Frqshift(mod1, mod2, mod3);
break;
}
}
Init
static int16_t _a1[1 << attr_size] __attribute__((section(".sdram")));
a1 = &_a1[0];
static int16_t _a2[1 << attr_size] __attribute__((section(".sdram")));
a2 = &_a2[0];
static int16_t _a3[1 << attr_size] __attribute__((section(".sdram")));
a3 = &_a3[0];
static int16_t _a4[1 << attr_size] __attribute__((section(".sdram")));
a4 = &_a4[0];
writepos = 0;
for (i = 0; i < LENGTH; i++) {
a1[i] = 0;
a2[i] = 0;
a3[i] = 0;
a4[i] = 0;
}
chorus.Init((uint16_t *)sdram_malloc(32768));
reverb.Init((uint16_t *)sdram_malloc(32768));
int j;
int i;
for (i = 0; i < 2; i++) {
for (j = 0; j < blepvoices; j++) {
oscp[i][j] = &blept[BLEPSIZE - 1];
nextvoice[i] = 0;
i0[i] = 0;
in0[i] = 0;
acc[i] = 0;
}
}
for (int k = 0; k < 2; k++) {
mid_t1[k] = &s_mid_t1[k][0];
mid_t2[k] = &s_mid_t2[k][0];
}
Control Rate
mod1 = inlet_mod1;
mod2 = inlet_mod2;
mod3 = inlet_mod3;
RT = param_rate;
if (inlet_gate && !trg) {
trg = 1;
phs = 0;
} else if (!inlet_gate) {
trg = 0;
}
sel = inlet_select - inlet_select / 9 * 9;
sel += sel < 0 ? 9 : 0;
for (i = 0; i < BUFSIZE; i++) {
L[i] = __SSAT(inlet_l[i], 28);
R[i] = __SSAT(inlet_r[i], 28);
if (!((sel == 6) && inlet_gate)) {
writepos = (writepos + 1) & LENGTHMASK;
a1[writepos] = __SSAT(L[i] >> 14, 16);
a2[writepos] = __SSAT(R[i] >> 14, 16);
}
}
if (inlet_gate > 0) {
SEL(sel);
}
for (i = 0; i < BUFSIZE; i++) {
outlet_l[i] = inlet_l[i] + (___SMMUL(L[i] - inlet_l[i], param_mix) << 1);
outlet_r[i] = inlet_r[i] + (___SMMUL(R[i] - inlet_r[i], param_mix) << 1);
}
