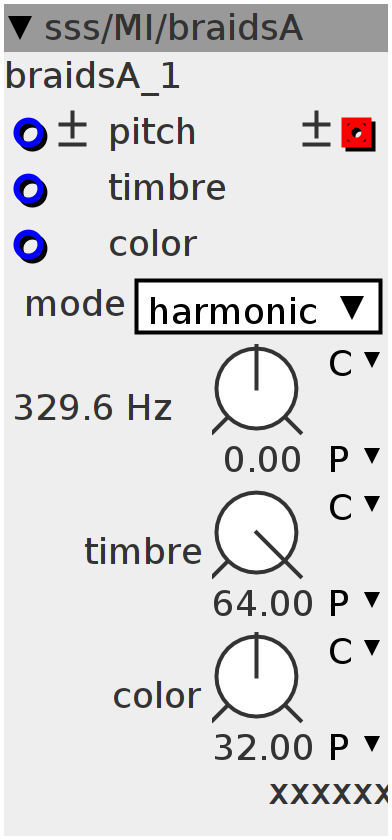

braidsA
Harmonics oscillator from Mutable Instruments Braids
Inlets
frac32 timbre
frac32 color
frac32.bipolar pitch
Outlets
frac32buffer.bipolar sine wave
Parameters
frac32.u.map timbre
frac32.u.map color
frac32.s.map.pitch pitch
Attributes
combo mode
Displays
int32.label d1
attr_mode;osc.Init();osc.set_parameters(__USAT((inlet_timbre + param_timbre) >> 12, 15),
__USAT((inlet_color + param_color) >> 12, 15));
osc.set_pitch((64 << 7) + ((param_pitch + inlet_pitch) >> 14));
osc.Render(0, &outlet_wave[0], BUFSIZE);
disp_d1 = (int32_t) "attr_mode";
