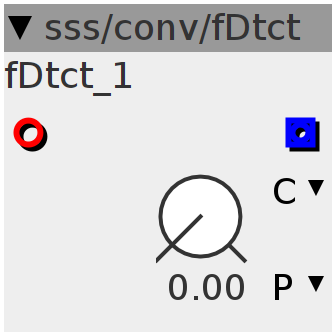

fDtct
fast frequency detector
Inlets
frac32buffer in
Outlets
frac32 pitch
Parameters
frac32.u.map pitch detections that are above treshold value will be ommited (not sure if it actually helps, but it's there to try)
Declaration
int32_t prv;
uint32_t Prv;
uint32_t cur;
uint32_t writepos;
int32_t array[128];
uint32_t Array[128];
int64_t TM;
int32_t TS;
bool zc;
int cnt;
int32_t tmp;
int32_t lp1;
int32_t lp2;
int32_t hp;
uint32_t Time;
int i;
Control Rate
// for(i=0;i<127;i++){
// tmp+=array[i]-tmp>>8;
//}
for (i = 0; i < 128; i++) {
int32_t diff = tmp - array[i];
diff = diff > 0 ? diff : -diff;
if (diff < (param_tresh)) {
int k = (i + writepos) & 127;
cur = Array[k];
TM = Array[k] - Prv;
TS = TM < 0 ? (1 << 32) + TM : TM;
Prv = Array[k];
}
}
outlet_pitch = ((int64_t)(65584) << 8) / TS << 4;
Audio Rate
lp1 += (inlet_in - lp1) >> 7;
lp2 += (lp1 - lp2) >> 7;
hp += (lp2 - hp) >> 10;
int32_t lh = lp2 - hp;
if ((lh >= 0) && (prv < 0)) {
int32_t chg = lh - prv;
tmp += chg - tmp >> 4;
array[writepos] = chg;
Array[writepos] = Time;
writepos = (writepos + 1) & 127;
}
Time += 1;
prv = lh;
