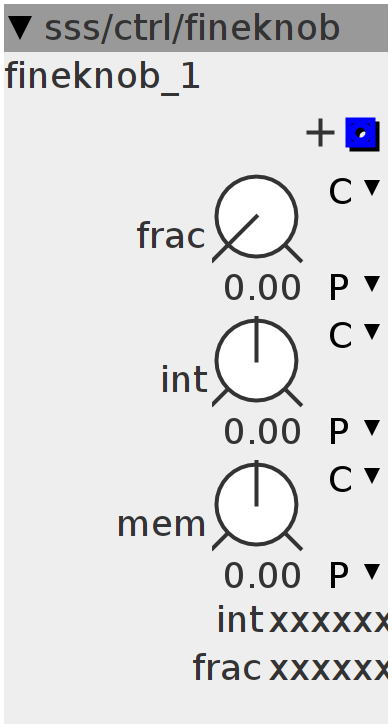

fineknob
integer and fractional knobs, wrapping when either boundary is reached use DRJ's preset manager to save presets (or save all three knobs one by one manually...).
Inlets
None
Outlets
frac32.positive output
Parameters
frac32.u.map =value
frac32.s.map =mem2
frac32.s.map =mem1
Displays
int32.label int
int32.label frac
Declaration
int32_t mem;
int reset;
Init
reset = 1;
Control Rate
if (reset == 1) {
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_int],
(param_mem >> 21) << 21, 0xFFFD);
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_frac],
(param_mem << 10) >> 4, 0xFFFD);
// mem=param_mem2;
reset = 0;
}
if (param_frac == ((1 << 27) - 1)) {
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_frac], 1,
0xFFFD);
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_int],
((param_int >> 21) << 21) + (1 << 21), 0xFFFD);
// mem=param_mem2;
}
if (param_frac == 0) {
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_frac],
((1 << 27) - 2), 0xFFFD);
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_int],
((param_int >> 21) << 21) - (1 << 21), 0xFFFD);
// mem=param_mem2;
}
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_mem],
(param_frac >> 6) + ((param_int >> 21) << 21), 0xFFFD);
// PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_mem2],mem,0xFFFD);
outlet_out = param_mem;
if (outlet_out > 0) {
disp_int = outlet_out >> 21;
disp_frac = (((((outlet_out - (disp_int << 21))) * 1000) >> 15) * 1000) >> 6;
} else {
disp_int = (outlet_out >> 21) + 1;
disp_frac = -(
1000000 -
((((((outlet_out - ((disp_int - 1) << 21))) * 1000) >> 15) * 1000) >> 6));
}
