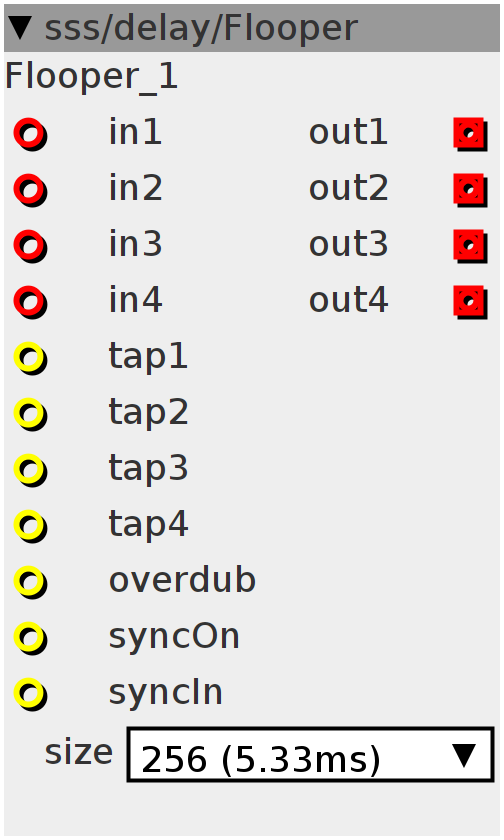

Flooper
Friendly 4 channel looper module with seperate ins/outs/triggers/looptime BPM-syncable with global overdub mode.
Inlets
frac32buffer audio input for channel 1
frac32buffer audio input for channel 2
frac32buffer audio input for channel 3
frac32buffer audio input for channel 4
bool32 records in1 to channel 1 buffer when high
bool32 records in2 to channel 2 buffer when high
bool32 records in3 to channel 3 buffer when high
bool32 records in4 to channel 4 buffer when high
bool32 when high, goes in "overdub" mode (length stays the same as first recording)
bool32 when high, syncs to host BPM (syncIn inlet)
bool32 connect clock to sync
Outlets
frac32buffer audio output for channel 1
frac32buffer audio output for channel 2
frac32buffer audio output for channel 3
frac32buffer audio output for channel 4
Attributes
combo size
static const uint32_t LENGTHPOW = (attr_size);
static const uint32_t LENGTH = (1 << attr_size);
static const uint32_t LENGTHMASK = ((1 << attr_size) - 1);
uint32_t L2 = LENGTH << 1;
uint32_t L3 = LENGTH * 3;
int32_t *array;
int i;
uint32_t writepos[4];
uint32_t countmax[4];
bool ttrg[4];
int32_t in[4];
uint32_t cnt;
bool ttrig;
uint32_t timer;
uint32_t ttmp[4];static int32_t _array[LENGTH * 4] __attribute__((section(".sdram")));
array = &_array[0];
for (i = 0; i < 4; i++) {
writepos[i] = 0;
}
for (i = 0; i < LENGTH; i++)
array[i] = 0;bool tap[4];
tap[0] = inlet_tap1;
tap[1] = inlet_tap2;
tap[2] = inlet_tap3;
tap[3] = inlet_tap4;
for (i = 0; i < 4; i++) {
if ((tap[i] > 0) && !ttrg[i]) {
ttrg[i] = 1;
if (inlet_overdub == 0) {
writepos[i] = 0;
}
} else if ((tap[i] == 0) && ttrg[i]) {
ttrg[i] = 0;
if (inlet_overdub == 0) {
countmax[i] = writepos[i];
writepos[i] = 0;
}
}
if (inlet_syncOn > 0) {
ttmp[i] = countmax[i] / timer * timer;
} else {
ttmp[i] = countmax[i];
}
}if ((inlet_syncIn > 0) && (!(ttrig))) {
ttrig = 1;
timer = cnt;
cnt = 0;
} else if (!(inlet_syncIn > 0)) {
ttrig = 0;
}
cnt += 1;
in[0] = inlet_in1;
in[1] = inlet_in2;
in[2] = inlet_in3;
in[3] = inlet_in4;
for (i = 0; i < 4; i++) {
writepos[i] += 1;
if (tap[i] == 1) {
if (inlet_overdub == 0) {
array[writepos[i] + i * LENGTH] = in[i];
}
if (inlet_overdub == 1) {
array[writepos[i] + i * LENGTH] =
__SSAT(in[i] + array[writepos[i] + i * LENGTH], 30);
writepos[i] = writepos[i] >= ttmp[i] ? 0 : writepos[i];
}
} else if (tap[i] == 0) {
writepos[i] = writepos[i] >= ttmp[i] ? 0 : writepos[i];
}
}
outlet_out1 = array[writepos[0]];
outlet_out2 = array[writepos[1] + LENGTH];
outlet_out3 = array[writepos[2] + L2];
outlet_out4 = array[writepos[3] + L3];
