crossDelay
crossover mixing delay line -the incoming audio is divided in three frequency bands using the freq1 (lp/bp) and freq2 (bp/hp) knobs for crossover cutoff and then spread across the taps. -each tap can be positioned anywhere in the buffer, both writing tap as well as reading tap -one writing tap can be selected as "overwriting" tap, overwriting the buffer with the respective filtered input. -the other two writing taps mix the incoming band with the buffer. -the reading taps read out different parts of the buffer, which, depending from their position, read out recorded bands (as long as they're not being overwritten by the overwriting tap). This can cause different types of delays, depending on writing and reading positions of the buffers, sometimes completely ignoring a frequency band while feeding back lots of energy from another band. Time-modulating is not (nicely) possible with this module as there is no interpolation. Though interesting rhythmic variations can be made by host-syncing the module (clock2timing module, don't forget to connect the pow-out pin to the clock2timing samplelength input)

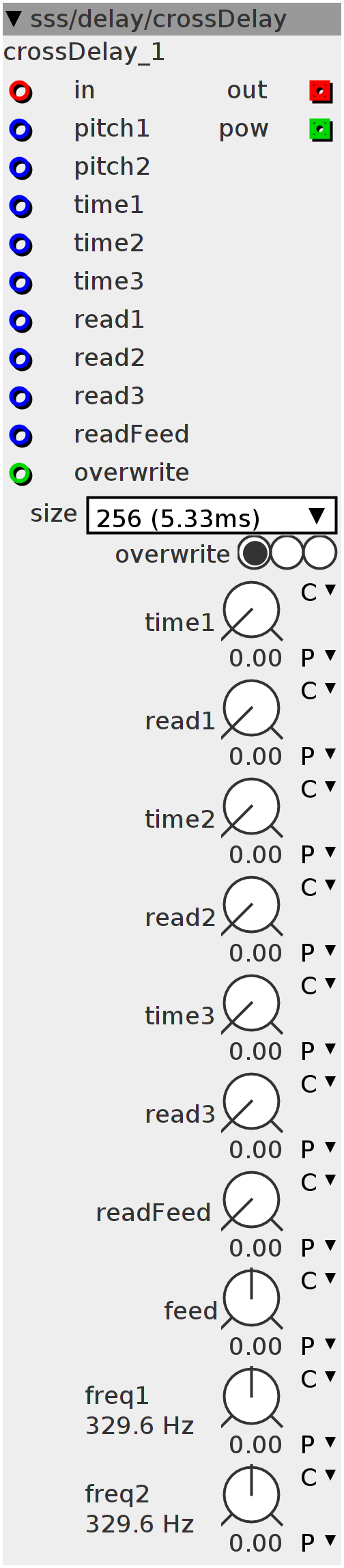

Inlets
frac32buffer in
frac32 pitch1
frac32 pitch2
frac32 time1
frac32 time2
frac32 time3
frac32 read1
frac32 read2
frac32 read3
frac32 readFeed
int32 overwrite
Outlets
frac32buffer out
int32 pow
Parameters
int32.hradio overwrite
frac32.u.map time1
frac32.u.map read1
frac32.u.map time2
frac32.u.map read2
frac32.u.map time3
frac32.u.map read3
frac32.u.map readFeed
frac32.s.map feed
frac32.s.map.pitch freq1
frac32.s.map.pitch freq2
Attributes
combo size
static const uint32_t LENGTHPOW = (attr_size);
static const uint32_t LENGTH = (1 << attr_size);
static const uint32_t LENGTHMASK = ((1 << attr_size) - 1);
int32_t *array;
uint32_t writepos;
int32_t out;
int32_t oit;
int32_t val1;
int32_t val2;
int32_t mix;
int32_t time1;
int32_t time2;
int32_t time3;
int32_t read1;
int32_t read2;
int32_t read3;
int32_t readFeed;static int32_t _array[attr_poly][1 << attr_size]
__attribute__((section(".sdram")));
array = &_array[parent->polyIndex][0];
int i;
writepos = 0;
for (i = 0; i < LENGTH; i++)
array[i] = 0;int32_t f1;
MTOF(param_freq1 + inlet_pitch1, f1);
int32_t f2;
MTOF(param_freq2 + inlet_pitch2, f2);
outlet_pow = attr_size;
time1 = param_time1 + inlet_time1;
time2 = param_time2 + inlet_time2;
time3 = param_time3 + inlet_time3;
read1 = param_read1 + inlet_read1;
read2 = param_read2 + inlet_read2;
read3 = param_read3 + inlet_read3;
readFeed = param_readFeed + inlet_readFeed;
int overwrite = param_overwrite + inlet_overwrite;
overwrite = overwrite - (overwrite / 3) * 3;val1 = ___SMMLA((inlet_in + ___SMMUL(param_feed << 3, out << 2) - val1) << 1,
f1, val1);
mix = val1 - inlet_in - ___SMMUL(param_feed << 3, out << 2);
val2 = ___SMMLA((mix - val2) << 1, f2, val2);
mix = val2 - mix;
writepos = (writepos + 1) & LENGTHMASK;
if (overwrite == 0) {
array[(writepos - (time1 >> (27 - attr_size))) & LENGTHMASK] = val1;
} else {
array[(writepos - (time1 >> (27 - attr_size))) & LENGTHMASK] += val1 >> 1;
}
if (overwrite == 1) {
array[(writepos - (time2 >> (27 - attr_size))) & LENGTHMASK] = val2;
} else {
array[(writepos - (time2 >> (27 - attr_size))) & LENGTHMASK] += val2 >> 1;
}
if (overwrite == 2) {
array[(writepos - (time3 >> (27 - attr_size))) & LENGTHMASK] = mix;
} else {
array[(writepos - (time3 >> (27 - attr_size))) & LENGTHMASK] += mix >> 1;
}
int32_t oot =
(array[(writepos - (read1 >> (27 - attr_size))) & LENGTHMASK] >> 1);
oot += (array[(writepos - (read2 >> (27 - attr_size))) & LENGTHMASK] >> 1);
oot += (array[(writepos - (read3 >> (27 - attr_size))) & LENGTHMASK] >> 1);
oot += ((inlet_in) >> 1);
int32_t oat =
(array[(writepos - ((readFeed) >> (27 - attr_size))) & LENGTHMASK] >> 1);
out = out + ((oat - out) >> 1);
oit = oit + ((oot - oit) >> 1);
outlet_out = oit;
