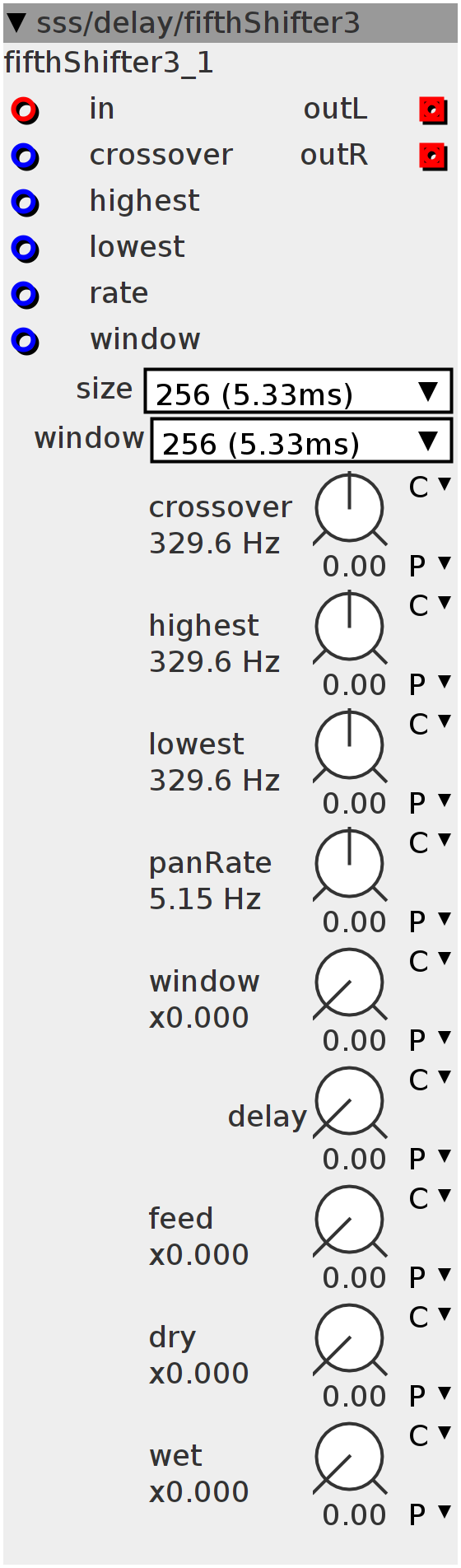

fifthShifter3
this is a quad-delayline pitchshifter/delay with 6dB crossover filters. The low frequency region will be pitched up by a fifth, the high frequency region will be pitched down by an octave. The "crossover" parameter sets the crossover frequency for the input, to send low frequencies to the fifth-up and high frequencies to the octave-down delayline. After each delayline there is a seperate 6dB crossover filter that sends the feedback to either up/down delayline when the audio passes the cutoff frequency. This way a frequency band can be set between which the audio will be pitched up/down in the feedback path. The pitchshifter delaysize is set with the "window" attribute and parameter. The max-delaytime is set using the "size" attribute and time parameter. Mostly usable for drony stuff.
Inlets
frac32buffer wave input
frac32 crossover
frac32 highest
frac32 lowest
frac32 rate
frac32 window
Outlets
frac32buffer outL
frac32buffer outR
Parameters
frac32.s.map.pitch sets "mid" crossover frequency. The pitchshifter/delay will mostly focus around this point
frac32.s.map.pitch highest
frac32.s.map.pitch lowest
frac32.s.map.lfopitch panRate
frac32.u.map.gain window
frac32.u.map.gain feed
frac32.u.map.gain dry
frac32.u.map.gain wet
frac32.u.map delay
Attributes
combo size
combo window
static const uint32_t LENGTHPOW = (attr_window);
static const uint32_t LENGTH = (1 << attr_window);
static const uint32_t LENGTHMASK = ((1 << attr_window) - 1);
static const uint32_t LP = (attr_size);
static const uint32_t LH = (1 << attr_size);
static const uint32_t LM = ((1 << attr_size) - 1);
int16_t *arrayL;
int16_t *arrayH;
uint32_t writepos;
uint32_t WP;
int16_t *ArrayL;
int16_t *ArrayH;
uint32_t readL;
uint32_t readH;
int32_t low;
int32_t high;
int32_t feedL;
int32_t feedH;
int32_t lp1;
int32_t lp2;
int32_t v27 = 1 << 27;
int32_t v8 = 1 << 8;
uint32_t LFO;static int16_t _arrayL[1 << attr_window] __attribute__((section(".sdram")));
arrayL = &_arrayL[0];
static int16_t _arrayH[1 << attr_window] __attribute__((section(".sdram")));
arrayH = &_arrayH[0];
static int16_t _ArrayL[1 << attr_size] __attribute__((section(".sdram")));
ArrayL = &_ArrayL[0];
static int16_t _ArrayH[1 << attr_size] __attribute__((section(".sdram")));
ArrayH = &_ArrayH[0];
int i;
writepos = 0;
for (i = 0; i < LENGTH; i++) {
arrayL[i] = 0;
arrayH[i] = 0;
}
for (i = 0; i < LH; i++) {
ArrayL[i] = 0;
ArrayH[i] = 0;
}int32_t frq;
MTOF(param_crossover + inlet_crossover, frq)
int32_t LOW;
int32_t HIGH;
MTOF(param_highest + inlet_highest, LOW)
MTOF(param_lowest + inlet_lowest, HIGH)
int32_t rate;
MTOFEXTENDED(param_panRate + inlet_rate, rate)
rate = rate >> 5;
int32_t window =
v8 + ___SMMUL(__USAT((param_window >> 4) + inlet_window, 27) << 4,
LENGTHMASK - v8 << 1);
uint32_t RD = param_delay >> 27 - LP;LFO += rate;
int32_t sine;
SINE2TINTERP(LFO, sine)
sine = (sine >> 3) + (1 << 29);
int32_t in = __SSAT(inlet_in, 28); //+___SMMUL(-feed<<1,param_feed)
low = ___SMMLA((in - low) << 1, frq, low);
high = in - low;
writepos = (writepos + 1) & LENGTHMASK;
WP = (WP + 1) & LM;
arrayL[writepos] = __SSAT(low + feedL >> 14, 16);
arrayH[writepos] = __SSAT(high + feedH >> 14, 16);
readL = (readL + 2);
readH = (readH + 1);
readL -= readL >= window ? window : 0;
readH -= readH >= window ? window : 0;
int32_t readbL = readL + (window >> 1);
int32_t readbH = readH + (window >> 1);
readbL -= readbL >= window ? window : 0;
readbH -= readbH >= window ? window : 0;
int32_t outLA = arrayL[(writepos + readL) & LENGTHMASK] << 14;
int32_t outLB = arrayL[(writepos + (readbL)) & LENGTHMASK] << 14;
int32_t outHA = arrayH[(writepos - (readH >> 1)) & LENGTHMASK] << 14;
int32_t outHB = arrayH[(writepos - (readbH >> 1)) & LENGTHMASK] << 14;
int32_t mixL = readL > (window >> 1) ? window - readL : readL;
mixL = ((int64_t)mixL << 31) / window;
int32_t mixH = readH > (window >> 1) ? window - readH : readH;
mixH = ((int64_t)mixH << 31) / window;
int32_t LW = (outLB + ___SMMUL(outLA - outLB << 2, mixL));
int32_t HG = (outHB + ___SMMUL(outHA - outHB << 2, mixH));
ArrayL[WP] = __SSAT(LW >> 14, 16);
ArrayH[WP] = __SSAT(HG >> 14, 16);
LW = ArrayL[(WP - RD) & LM] << 14;
HG = ArrayH[(WP - RD) & LM] << 14;
int32_t OUT = LW + HG;
int32_t dry = __SSAT(___SMMUL(inlet_in << 1, param_dry), 28);
outlet_outL = __SSAT(
dry +
__SSAT(___SMMUL(LW + ___SMMUL(HG - LW << 2, sine) << 1, param_wet) << 1,
28),
28);
outlet_outR = __SSAT(
dry +
__SSAT(___SMMUL(HG + ___SMMUL(LW - HG << 2, sine) << 1, param_wet) << 1,
28),
28);
lp1 = ___SMMLA((LW - lp1) << 1, LOW, lp1);
lp2 = ___SMMLA((HG - lp2) << 1, HIGH, lp2);
feedL = -___SMMUL(lp1 + lp2, param_feed) << 1;
feedH = -___SMMUL((HG - lp2) + (LW - lp1), param_feed) << 1;
// ArrayL[WP] = __SSAT(feedL>>14,16);
// ArrayH[WP] = __SSAT(feedH>>14,16);
// feedL=ArrayL[(WP-RD)&LM]<<14;
// feedH=ArrayH[(WP-RD)&LM]<<14;
