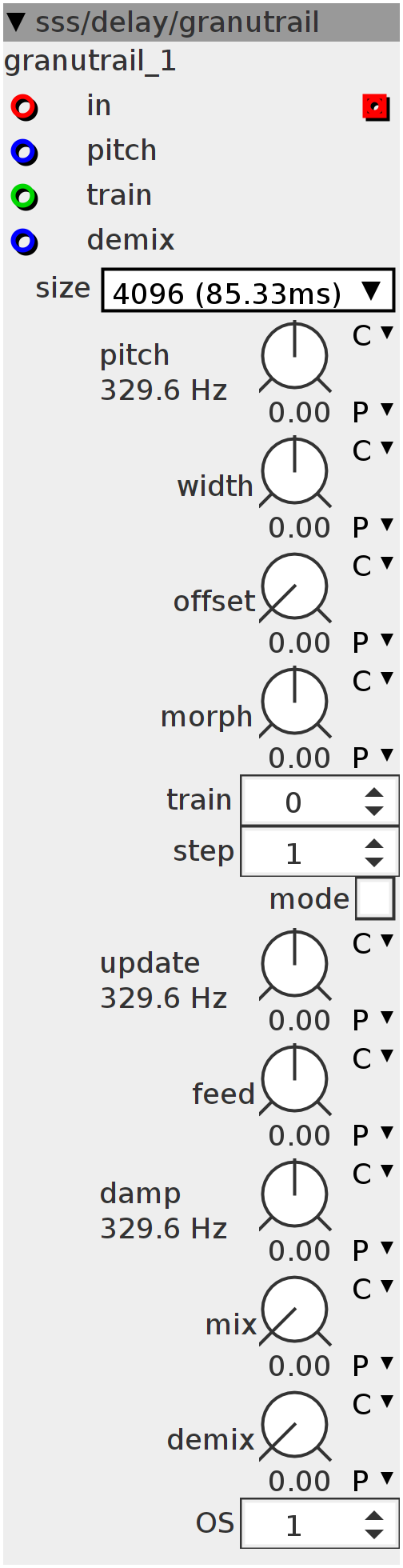

granutrail
Morphing granular train delay Internal oscillator controls the play-position and at the same time morphs from delay-tap to delay-tap using it's phase. Pitch controls the rate at which the recording is played (play position). Width sets the range of the play position. Offset sets a static offset to the play-position (delay) Morph adds a changing offset to the play position After each repeat of the play-position a new offset will be generated: Train sets how many different timing positions will be morphed-through by the play position. Step sets the stepsize of the time/tap-morph The internal delay-memory can be overwritten or updated by switching the "mode" switch. When "on", the "update" knob sets the rate at which the memory will follow the incoming signal. The effect is like a bit like a reverb. "feed" enables you to feed the delay-output back into the memory of the delay. (together with the update-mode). Mix sets the mix-amount between dry and completely wet. "demix" allows a quick connection for an envelope to duck the wetness of the signal-> only wet when there's no audio coming in, which generates interesting tails for short sounds. The module can be oversampled with the "OS" control. Though keep watch of your CPU use!
Inlets
frac32buffer wave input
frac32 pitch
frac32 demix
int32 train
Outlets
frac32buffer out
Parameters
int32 train
int32 step
int32 OS
bool32.tgl mode
frac32.s.map.pitch pitch
frac32.s.map.pitch update
frac32.s.map.pitch damp
frac32.s.map width
frac32.s.map morph
frac32.s.map feed
frac32.u.map offset
frac32.u.map mix
frac32.u.map demix
Attributes
combo size
static const uint32_t LENGTHPOW = (attr_size);
static const uint32_t LENGTH = (1 << attr_size);
static const uint32_t LENGTHMASK = ((1 << attr_size) - 1);
int16_t *array;
uint32_t writepos;
uint32_t phase;
int32_t del;
int32_t read(uint32_t Time) {
uint32_t tmp_d = Time & ((1 << 27) - 1);
uint32_t tmp_di = writepos - (tmp_d >> (27 - LENGTHPOW)) - 1;
uint32_t tmp_w1 = (tmp_d << (LENGTHPOW + 3)) & 0x3FFFFFFF;
uint32_t tmp_w2 = (1 << 30) - tmp_w1;
int32_t tmp_a1 = array[tmp_di & LENGTHMASK] << 16;
int32_t tmp_a2 = array[(tmp_di + 1) & LENGTHMASK] << 16;
del = ___SMMUL(tmp_a1, tmp_w1);
del = ___SMMLA(tmp_a2, tmp_w2, del);
}
uint32_t prev1;
uint32_t prev2;
uint32_t cnt1;
uint32_t cnt2;
int dir1;
int dir2;
uint32_t C1;
uint32_t C2;
int32_t val;
int32_t out;
int32_t vol;
uint32_t T1;
uint32_t T2;
uint32_t morph;
int i;static int16_t _array[attr_poly][1 << attr_size]
__attribute__((section(".sdram")));
array = &_array[parent->polyIndex][0];
int i;
writepos = 0;
for (i = 0; i < LENGTH; i++)
array[i] = 0;
cnt1 = 0;
dir1 = 1;
dir2 = 1;int32_t f;
MTOFEXTENDED(param_pitch + inlet_pitch, f)
f = f / param_OS;
int32_t F;
MTOFEXTENDED(param_damp, F)
int32_t M;
// MTOFEXTENDED(param_morph,M)
int train = param_train + inlet_train;
M = param_morph;
M = ___SMMUL(M << 4, (M > 0 ? M : -M) << 4) / param_OS;
int32_t G;
MTOF(__SSAT(param_update + ___SMMUL(inlet_demix << 3, param_demix << 2), 28), G)
int32_t width1 = param_width >> attr_size - 8;
width1 = (width1) / (train);
int32_t width2 = width1 * (train + 1);
if (param_morph == 0) {
morph = 0;
}
int32_t Mix;
Mix = param_mix;
Mix -= ___SMMUL(___SMMUL(inlet_demix << 3, param_demix << 2) << 3, Mix << 2);int32_t in = (inlet_in >> 15) + (___SMMUL(out << 3, param_feed << 2) >> 14);
writepos = (writepos + 1) & LENGTHMASK;
if (param_mode > 0) {
array[writepos] = __SSAT(
(in >> 1) + ___SMMLA(-(array[writepos]) << 2, G, array[writepos]), 16);
array[(writepos - 1) & LENGTHMASK] =
(array[(writepos - 1) & LENGTHMASK] >> 1) +
((array[(writepos - 2) & LENGTHMASK] >> 1) +
(array[(writepos)&LENGTHMASK] >> 1) >>
1);
} else {
array[writepos] = __SSAT(in, 16);
}
outlet_out = 0;
for (i = 0; i < param_OS; i++) {
phase += f;
int32_t mix;
SINE2TINTERP((phase >> 1) - (1 << 30), mix)
mix = (mix >> 2) + (1 << 29);
uint32_t p1 = phase;
if (prev1 > p1) {
T2 = C1;
cnt1 = cnt1 >= train ? 0 : cnt1 + 1;
C2 = cnt1 + 1;
C2 = C2 * width1 * param_step;
C1 = width1 * cnt1 * param_step;
C1 = C1 - C1 / width2 * width2;
C2 = C2 - C2 / width2 * width2;
}
morph += (M >> 19);
morph = morph & ((1 << 27) - 1);
read(C1 + morph + param_offset);
int32_t tmp = del;
read(C2 + morph + param_offset);
val = ___SMMLA(
(___SMMUL((1 << 30) - mix, tmp << 2) + ___SMMUL(mix, del << 2) - val)
<< 1,
F, val);
out = val;
vol += (out - vol) >> 10;
out = out - vol;
outlet_out += (___SMMUL(Mix << 3, out << 2) +
___SMMUL((1 << 27) - Mix << 3, inlet_in << 2)) /
param_OS;
prev1 = p1;
}
