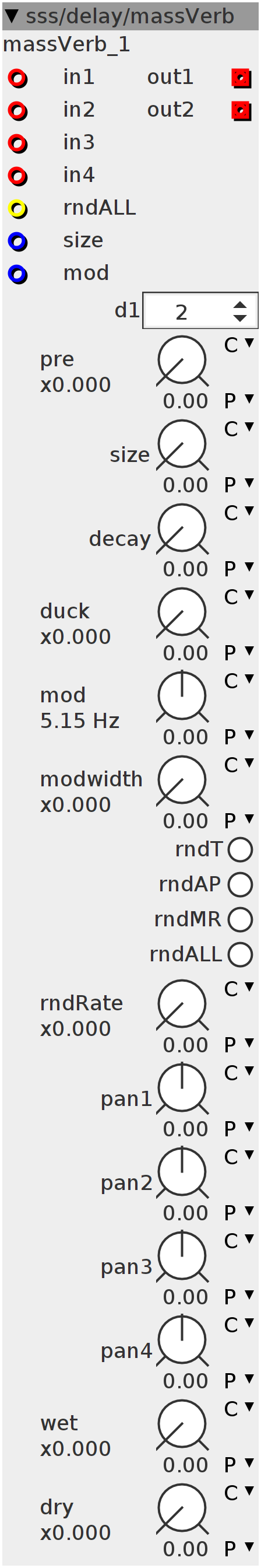

massVerb

Feedback delay network with 4 delay lines and 12 allpass filters. High quality 32bit. Internal parameters are randomisable and function as different room-shapes. These can be saved/loaded using the table-load/save factory modules for recall in other projects. -Overall size and decay parameters -pre-attenuation of input signal before being fed into the fnd matrix. -auto-ducking of decay when output signal goes high to prevent overloading (eg. for endless drones) -4 inputs for 4 different signals, each pannable for positioning in the room.
Author: Remco van der Most
License: BSD
Github: sss/delay/massVerb.axo

Inlets

frac32buffer in1

frac32buffer in2

frac32buffer in3

frac32buffer in4

bool32 rndALL

frac32 size

frac32 mod

Outlets

frac32buffer out1

frac32buffer out2

Parameters

frac32.s.map pan1

frac32.s.map pan2

frac32.s.map pan3

frac32.s.map pan4

frac32.u.map.gain pre

frac32.u.map.gain duck

frac32.u.map.gain modwidth

frac32.u.map.gain rndRate

frac32.u.map.gain wet

frac32.u.map.gain dry

frac32.u.map size

frac32.u.map decay

frac32.s.map.lfopitch mod

bool32.mom rndT

bool32.mom rndAP

bool32.mom rndMR

bool32.mom rndALL

Attributes

spinner d1

Declaration
static const uint32_t LENGTH = 28;

int32_t *d1d;
int32_t *d2d;
int32_t *d3d;
int32_t *d4d;
int32_t D[4];
int32_t bs[12][2];
int i;
uint32_t d1p;
uint32_t d2p;
uint32_t d3p;
uint32_t d4p;
int32_t All;
int32_t ALLPASS(int32_t in, int32_t pitch, int I) {
  int32_t Frq;
  SINE2TINTERP(pitch + sine[I] << 3, Frq)
  bs[I][1] = ___SMMUL(-in << 1, Frq) + bs[I][0] + ___SMMUL(bs[I][1] << 1, Frq);
  All = bs[I][1];
  bs[I][0] = in;
}
int32_t hp[4];
int32_t v27 = 1 << 27;
int32_t lp[4];
bool rndT, rndAP, rndALL, rndMR;
int32_t sine[12];
int32_t phs[12];
int32_t *array;
int32_t PL;
int32_t PR;
int32_t pn[4];
int32_t PAN(int32_t in, int32_t pan) {
  PR = ___SMMUL(in << 2, pan);
  PL = in - PR;
}
int32_t env;
Init
static int32_t _array[LENGTH] __attribute__((section(".sdram")));
array = &_array[0];

static int32_t _d1d[attr_d1] __attribute__((section(".sdram")));
d1d = &_d1d[0];
static int32_t _d2d[attr_d1] __attribute__((section(".sdram")));
d2d = &_d2d[0];
static int32_t _d3d[attr_d1] __attribute__((section(".sdram")));
d3d = &_d3d[0];
static int32_t _d4d[attr_d1] __attribute__((section(".sdram")));
d4d = &_d4d[0];

for (i = 0; i < attr_d1; i++)
  d1d[i] = 0;
for (i = 0; i < attr_d1; i++)
  d2d[i] = 0;
for (i = 0; i < attr_d1; i++)
  d3d[i] = 0;
for (i = 0; i < attr_d1; i++)
  d4d[i] = 0;
d1p = 0;
d2p = 0;
d3p = 0;
d4p = 0;
for (i = 0; i < 28; i++) {
  array[i] = (int32_t)(GenerateRandomNumber() >> 5);
}
Control Rate
uint32_t size =
    ___SMMUL(attr_d1 - 1 << 3, __USAT(param_size + inlet_size, 27) << 2) + 1;
D[0] = ___SMMUL(size - 1 << 3, array[0] << 2) + 1;
D[1] = ___SMMUL(size - 1 << 3, array[1] << 2) + 1;
D[2] = ___SMMUL(size - 1 << 3, array[2] << 2) + 1;
D[3] = ___SMMUL(size - 1 >> 3, array[3] << 2) + 1;
pn[0] = param_pan1 + v27 << 2;
pn[1] = param_pan2 + v27 << 2;
pn[2] = param_pan3 + v27 << 2;
pn[3] = param_pan4 + v27 << 2;

int32_t rate[12];
for (i = 0; i < 12; i++) {
  MTOFEXTENDED(param_mod + inlet_mod +
                   ___SMMUL(array[i + 16] << 2, param_rndRate),
               rate[i])
  rate[i] = rate[i] >> 6;
}

if ((param_rndAP > 0) && !rndAP) {
  rndAP = 1;
  for (i = 0; i < 8; i++) {
    array[i + 4] = (int32_t)(GenerateRandomNumber() >> 5);
  }
} else if (param_rndAP == 0) {
  rndAP = 0;
}

if ((param_rndT > 0) && !rndT) {
  rndT = 1;
  for (i = 0; i < 4; i++) {
    array[i] = (int32_t)(GenerateRandomNumber() >> 5);
  }
} else if (param_rndT == 0) {
  rndT = 0;
}

if ((param_rndMR > 0) && !rndMR) {
  rndMR = 1;
  for (i = 0; i < 8; i++) {
    array[i + 16] = (int32_t)(GenerateRandomNumber() >> 5);
  }
} else if (param_rndMR == 0) {
  rndMR = 0;
}
int RNDALL = (param_rndALL + inlet_rndALL) & 1;
if ((RNDALL > 0) && !rndALL) {
  rndALL = 1;
  for (i = 0; i < 24; i++) {
    array[i] = (int32_t)(GenerateRandomNumber() >> 5);
  }
} else if (RNDALL == 0) {
  rndALL = 0;
}
Audio Rate
int32_t i1 = d1d[d1p];
int32_t i2 = d2d[d2p];
int32_t i3 = d3d[d3p];
int32_t i4 = d4d[d4p];
PAN(inlet_in1, pn[0]);
i1 += ___SMMUL(param_pre, PL << 1);
i2 += ___SMMUL(param_pre, PR << 1);
outlet_out1 = ___SMMUL(param_dry, PL << 1);
outlet_out2 = ___SMMUL(param_dry, PR << 1);
PAN(inlet_in2, pn[1]);
i2 += ___SMMUL(param_pre, PL << 1);
i3 += ___SMMUL(param_pre, PR << 1);
outlet_out1 += ___SMMUL(param_dry, PL << 1);
outlet_out2 += ___SMMUL(param_dry, PR << 1);
PAN(inlet_in3, pn[2]);
i3 += ___SMMUL(param_pre, PL << 1);
i4 += ___SMMUL(param_pre, PR << 1);
outlet_out1 += ___SMMUL(param_dry, PL << 1);
outlet_out2 += ___SMMUL(param_dry, PR << 1);
PAN(inlet_in4, pn[3]);
i4 += ___SMMUL(param_pre, PL << 1);
i1 += ___SMMUL(param_pre, PR << 1);
outlet_out1 += ___SMMUL(param_dry, PL << 1);
outlet_out2 += ___SMMUL(param_dry, PR << 1);

for (i = 0; i < 8; i++) {
  phs[i] += rate[i];
  sine[i] = phs[i] > 0 ? phs[i] : -phs[i];
  sine[i] = ___SMMUL(sine[i], param_modwidth) >> 4;
}

ALLPASS(i1, array[4], 0);
i1 = All;
ALLPASS(i2, array[5], 1);
i2 = All;
ALLPASS(i3, array[6], 2);
i3 = All;
ALLPASS(i4, array[7], 3);
i4 = All;
int32_t t1 = i2 + i3;
int32_t t2 = -i1 - i4;
int32_t t3 = i1 - i4;
int32_t t4 = i2 - i3;
ALLPASS(t1, array[12], 8);
t1 = All;
ALLPASS(t2, array[13], 9);
t2 = All;
ALLPASS(t3, array[14], 10);
t3 = All;
ALLPASS(t4, array[15], 11);
t4 = All;
int32_t g2 =
    755299123 + param_decay -
    (__USAT(
        ___SMMUL((___SMMUL(param_duck, param_decay) << 4), __USAT(env, 28) << 3)
            << 2,
        27));
int32_t o1 = ___SMMLA(t1, g2, t1 >> 1);
int32_t o2 = ___SMMLA(t2, g2, t2 >> 1);
int32_t o3 = ___SMMLA(t3, g2, t3 >> 1);
int32_t o4 = ___SMMLA(t4, g2, t4 >> 1);
o1 = __SSAT(o1, 28);
o2 = __SSAT(o2, 28);
o3 = __SSAT(o3, 28);
o4 = __SSAT(o4, 28);
ALLPASS(o1, array[8], 4);
o1 = All;
ALLPASS(o2, array[9], 5);
o2 = All;
ALLPASS(o3, array[10], 6);
o3 = All;
ALLPASS(o4, array[11], 7);
o4 = All;

hp[0] += o1 - hp[0] >> 9;
hp[1] += o2 - hp[1] >> 9;
hp[2] += o3 - hp[2] >> 9;
hp[3] += o4 - hp[3] >> 9;
o1 -= hp[0] >> 1;
o2 -= hp[1] >> 1;
o3 -= hp[2] >> 1;
o4 -= hp[3] >> 1;
lp[0] += o1 - lp[0] >> 1;
lp[1] += o2 - lp[1] >> 1;
lp[2] += o3 - lp[2] >> 1;
lp[3] += o4 - lp[3] >> 1;
o1 = o1 * 3 + lp[0] >> 2;
o2 = o2 * 3 + lp[1] >> 2;
o3 = o3 * 3 + lp[2] >> 2;
o4 = o4 * 3 + lp[3] >> 2;

d1d[d1p] = o1;
d2d[d2p] = o2;
d3d[d3p] = o3;
d4d[d4p] = o4;
d1p++;
d2p++;
d3p++;
d4p++;
if (d1p >= D[0])
  d1p = 0;
if (d2p >= D[1])
  d2p = 0;
if (d3p >= D[2])
  d3p = 0;
if (d4p >= D[3])
  d4p = 0;
outlet_out1 += ___SMMUL(param_wet, o3) << 1;
outlet_out2 += ___SMMUL(param_wet, o4) << 1;
int32_t out1 = o1;
int32_t out2 = o2;
int32_t out3 = o3;
int32_t out4 = o4;
out1 = out1 > 0 ? out1 : -out1;
out2 = out2 > 0 ? out2 : -out2;
out3 = out3 > 0 ? out3 : -out3;
out4 = out4 > 0 ? out4 : -out4;
out1 = (out1 > out2 ? out1 : out2);
out1 = (out1 > out3 ? out1 : out3);
out1 = (out1 > out4 ? out1 : out4);
env += out1 > env ? (out1 - env >> 3) : (out1 - env >> 11);
