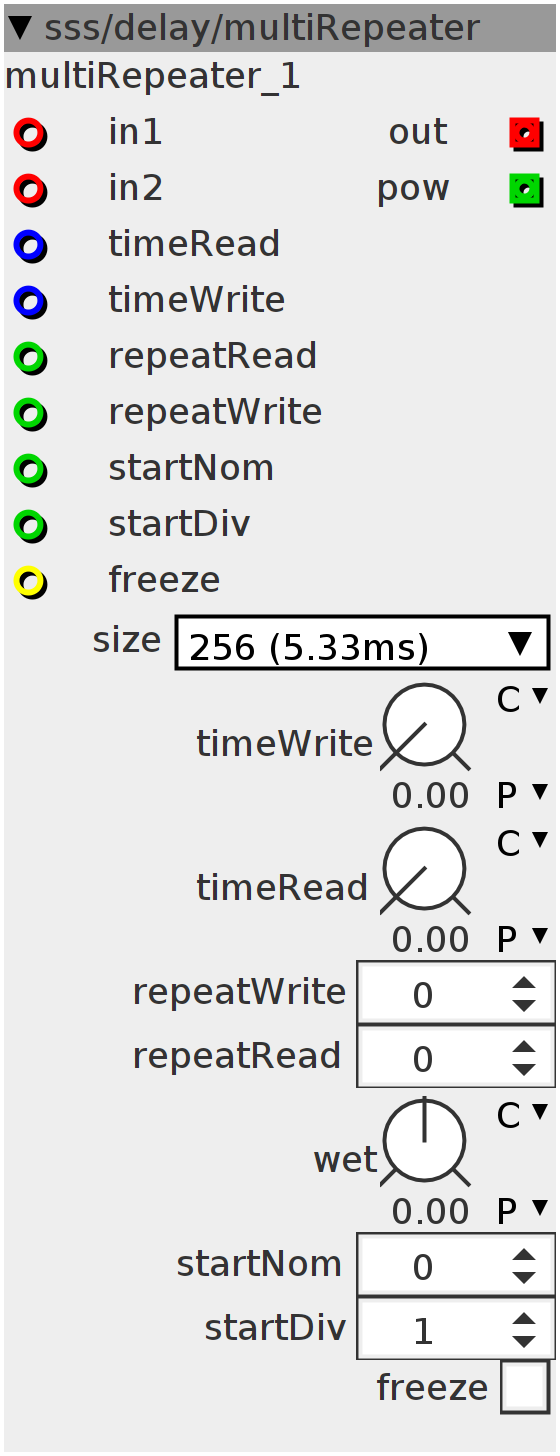

multiRepeater
multi repeating delay -features multiple write and read position to create a repeating effect inputs: -in1: this is fed into both the first delay-writer as the following "repeater" delay-writers (stacks with multiple readers) -in2: this is fed only to the first delay-writer, so only repeats according to the amount of "repeating" delay readers. controls/inputs: -timeWrite: maximum writing time (all written repeats are within this time) -timeRead: maximum reading time (all read repeats are within this time) -repeatWrite: repeats the writer this many times in the given reading time with an equal offset between all writers (timeRead) -repeatRead: repeats the reader this many times in the given reading time with an equal offset between al writers(timeRead) -freeze: freezes the writing process of the delay, causing the readers to keep repeating what's in the buffer. Time offsetting the reading-process: -startNom: sets the multiplication of the total writeTime -startDiv: sets the division of the multiplied total writeTime. This read-offset is used for offsetting the reading-process by a division of the writing time. This way, you can easily making a complex shuffling delay which keeps track of the writing-rate, filling in the gaps.
Inlets
frac32buffer wave input
frac32buffer in2
frac32 timeRead
frac32 timeWrite
int32 repeatRead
int32 repeatWrite
int32 startNom
int32 startDiv
bool32 freeze
Outlets
int32 pow
frac32buffer out
Parameters
frac32.u.map timeWrite
frac32.u.map timeRead
int32 repeatWrite
int32 repeatRead
int32 startNom
int32 startDiv
frac32.s.map wet
bool32.tgl freeze
Attributes
combo size
static const uint32_t LENGTHPOW = (attr_size);
static const uint32_t LENGTH = (1 << attr_size);
static const uint32_t LENGTHMASK = ((1 << attr_size) - 1);
int32_t *array;
uint32_t writepos;
int i;
uint32_t Timeread;
uint32_t Timewrite;
int64_t TIME;static int32_t _array[1 << attr_size] __attribute__((section(".sdram")));
array = &_array[0];
writepos = 0;
for (i = 0; i < LENGTH; i++)
array[i] = 0;int freeze = param_freeze + inlet_freeze;
int repeatread = param_repeatRead + inlet_repeatRead;
int repeatwrite = param_repeatWrite + inlet_repeatWrite;
int startNom = param_startNom + inlet_startNom;
int startDiv = param_startDiv + inlet_startDiv;
if (freeze == 0) {
TIME = inlet_timeWrite + param_timeWrite;
TIME = (TIME * startNom / startDiv) >> (27 - LENGTHPOW);
Timeread = (param_timeRead + inlet_timeRead) >> (27 - LENGTHPOW);
Timewrite = (param_timeWrite + inlet_timeWrite) >> (27 - LENGTHPOW);
}
outlet_pow = attr_size;uint32_t delayread = writepos - Timeread;
uint32_t delaywrite = writepos - Timewrite;
int32_t sum = 0;
writepos = (writepos + 1) & LENGTHMASK;
if (freeze == 0) {
array[writepos] = inlet_in1 + inlet_in2;
}
for (i = 1; i < repeatread + 1; i++) {
sum += array[(writepos - Timeread / repeatread * i) & LENGTHMASK];
}
if (freeze == 0) {
for (i = 1; i < repeatwrite; i++) {
array[(writepos - Timeread / repeatwrite * i - TIME) & LENGTHMASK] +=
inlet_in1;
}
}
// for(i=1;i<repeatread;i++){
// sum=array[(writepos-Timeread)& LENGTHMASK];}
outlet_out = ___SMMUL(sum << 3, param_wet << 2) + inlet_in1 + inlet_in2;
