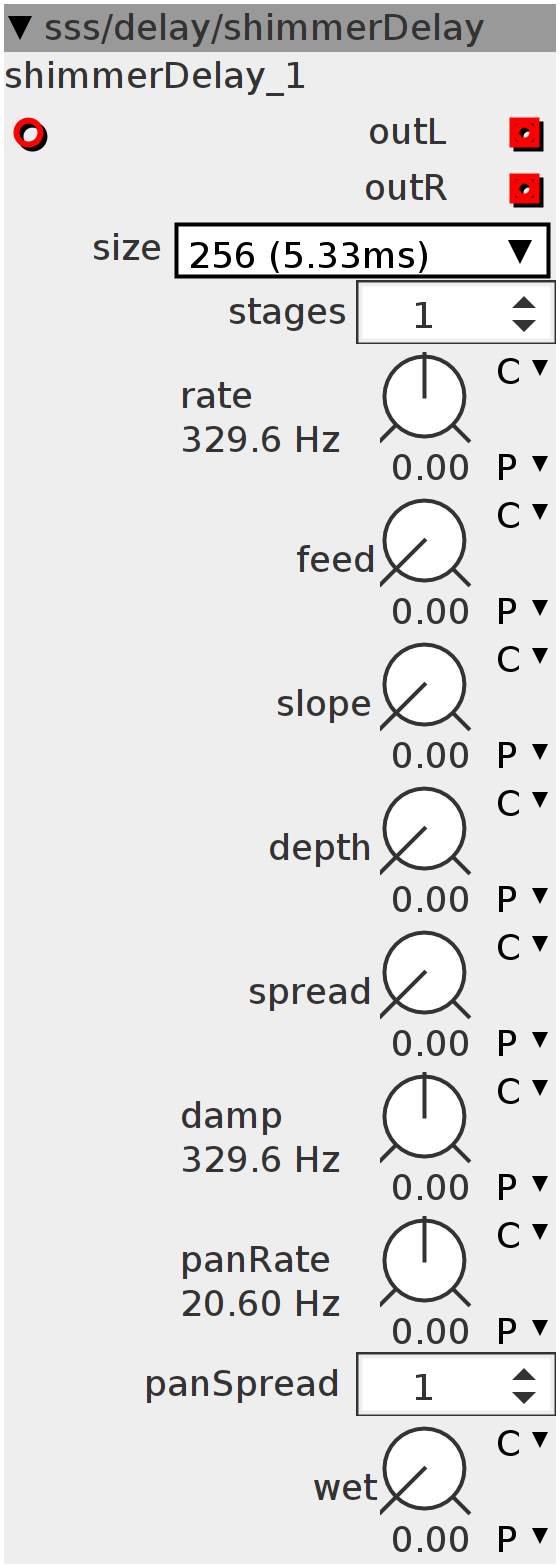

shimmerDelay
modulated delay modulation depth is recalculated for each buffer size for easy chorusing/phasing effects. -rate: speed of modulation -feed: amount of feedback for each stage -slope: volume drop-off for each next stage (softening the effect)-> volume at max will let everything through to the next stage at original volume -depth: sets the modulation amount of the internal lfo (controlled by the rate parameter and scaled to small modulation width according to buffer size). -spread: sets a delay different for each next stage. Set delay-time is maximum time of all stages together, so each stage is a part of the time set by this control, divided by the number of stages. -damp: sets the cutoff frequency of a 3dB LP filter in the feedback chain. -panRate: sets the speed at which the stages are moved between left and right (sine-shaped). -panSpread: sets the difference is panning-phase between each next phase (do they sit next to each other or does the panning "jump around") -wet: mixes the modulated signal with the dry signal.
Inlets
frac32buffer wave input
Outlets
frac32buffer outL
frac32buffer outR
Parameters
frac32.s.map.pitch rate
frac32.s.map.pitch damp
frac32.u.map feed
frac32.u.map slope
frac32.u.map depth
frac32.u.map spread
frac32.u.map wet
frac32.s.map.kpitch panRate
int32 panSpread
Attributes
spinner stages
combo size
static const uint32_t LENGTHPOW = (attr_size);
static const uint32_t LENGTH = (1 << attr_size);
static const uint32_t LENGTHMASK = ((1 << attr_size) - 1);
int16_t *array;
uint32_t writepos;
uint32_t phase;
int32_t in[attr_stages + 1];
int j;
int i;
uint32_t tmp_d;
uint32_t tmp_di;
uint32_t tmp_w1;
uint32_t tmp_w2;
int32_t tmp_a1;
int32_t tmp_a2;
int32_t tmp_r;
int32_t sum;
uint32_t PHASE;
int32_t prev1;
int32_t step1;
int32_t prev2;
int32_t step2;
int32_t Depth;
int32_t Spread;
int32_t damp[attr_stages];static int16_t _array[(1 << attr_size) * attr_stages]
__attribute__((section(".sdram")));
array = &_array[0];
writepos = 0;
for (i = 0; i < LENGTH * attr_stages; i++)
array[i] = 0;int32_t freq;
MTOFEXTENDED(param_rate, freq)
freq = freq >> 10;
int32_t panRate;
MTOFEXTENDED(param_panRate, panRate)
panRate = panRate >> 10;
Depth += ((param_depth >> (LENGTHPOW < 11 ? 11 : LENGTHPOW) - 11) - Depth) >> 6;
Spread += (___SMMUL(param_spread << 3, param_spread << 2) - Spread) >> 6;
step1 = (Depth - prev1) >> 4;
int32_t depth = prev1;
prev1 = Depth;
step2 = (Spread - prev2) >> 4;
int32_t spread = prev2;
prev2 = Spread;
int32_t slope = ___SMMUL(param_slope << 3, param_wet << 2);
int32_t cutoff;
MTOF(param_damp, cutoff)depth += step1;
spread += step2;
writepos = (writepos + 1) & LENGTHMASK;
in[0] = __SSAT(
((inlet_in >> 1) + ___SMMUL(-(param_feed << 1) * 3, in[1] << 2)) >> 14, 16);
sum = 0;
int32_t sine;
int32_t outL = 0;
int32_t outR = 0;
phase += freq;
PHASE += panRate;
for (i = 0; i < attr_stages; i++) {
array[writepos + i * LENGTH] =
__SSAT(in[i], 15) +
__SSAT(___SMMUL(-(param_feed << 1) * 3, in[i + 1] << 2), 15);
uint32_t Phase = phase + (i * ((1 << 31) / attr_size) << 1);
Phase = Phase > (1 << 31) ? -Phase : Phase;
SINE2TINTERP((i * ((1 << 27) / (attr_size >> 1)) * param_panSpread) + PHASE,
sine)
sine = (sine >> 5) + (1 << 26);
tmp_d = (___SMMUL(depth << 1, Phase) + (i * spread / attr_stages)) &
((1 << 27) - 1);
tmp_di = writepos - (tmp_d >> (27 - LENGTHPOW)) - 1;
tmp_w1 = (tmp_d << (LENGTHPOW + 3)) & 0x3FFFFFFF;
tmp_w2 = (1 << 30) - tmp_w1;
tmp_a1 = array[(tmp_di & LENGTHMASK) + i * LENGTH] << 16;
tmp_a2 = array[((tmp_di + 1) & LENGTHMASK) + i * LENGTH] << 16;
tmp_r = ___SMMUL(tmp_a1, tmp_w1);
tmp_r = ___SMMLA(tmp_a2, tmp_w2, tmp_r);
damp[i] = ___SMMLA((tmp_r - damp[i]) << 1, cutoff, damp[i]);
in[i + 1] = __SSAT(inlet_in + (damp[i] + tmp_r >> 1) >> 14, 15);
sum += ___SMMUL((damp[i] + tmp_r >> 1) << 3, param_slope << 2);
outL += ___SMMUL(___SMMUL((damp[i] + tmp_r >> 1) << 3, slope << 2) << 3,
sine << 2);
outR += ___SMMUL(___SMMUL((damp[i] + tmp_r >> 1) << 3, slope << 2) << 3,
(1 << 27) - sine << 2);
}
outlet_outL = (outL << 1) + inlet_in;
outlet_outR = (outR << 1) + inlet_in;
