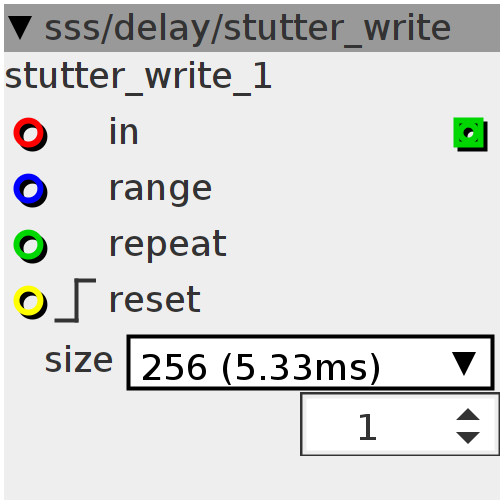

stutter_write
write module for the stutter delay Connect range input to the range output of the stutter delay
Inlets
bool32.rising reset
frac32buffer wave input
frac32 range
int32 repeat
Outlets
int32 power
Parameters
int32 repeat
Attributes
combo size
Declaration
static const uint32_t LENGTHPOW = (attr_size);
static const uint32_t LENGTH = (1 << attr_size);
static const uint32_t LENGTHMASK = ((1 << attr_size) - 1);
int16_t *array;
uint32_t writepos;
int32_t range;
int count;
int rtrig;
Init
static int16_t _array[attr_poly][1 << attr_size]
__attribute__((section(".sdram")));
array = &_array[parent->polyIndex][0];
int i;
writepos = 0;
for (i = 0; i < LENGTH; i++)
array[i] = 0;
Control Rate
outlet_power = attr_size;
Audio Rate
range = ___SMMUL(LENGTHMASK << 3, inlet_range << 2);
writepos = (writepos + 1) - (((writepos + 1) / range) * range);
if ((inlet_reset > 0) && (!(rtrig))) {
writepos = 0;
rtrig = 1;
} else if (inlet_reset == 0) {
rtrig = 0;
}
if (writepos == 0) {
count += 1;
}
int8_t repeat = param_repeat + inlet_repeat;
count = count - ((count / repeat) * repeat);
if (count == 0)
array[writepos] = __SSAT(inlet_in >> 14, 16);
