BIGscopeK

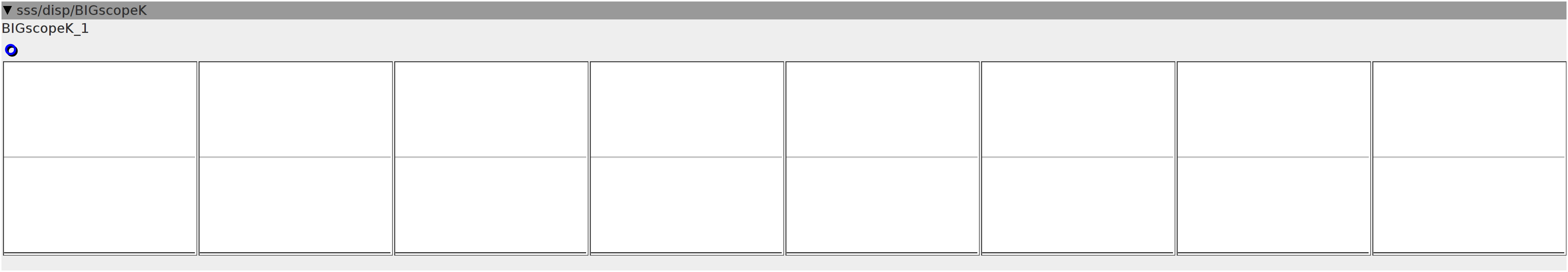

bipolar audio rate signal oscilloscope (time domain), showing 128 consecutive samples after the signal becomes positive. this module has outputs to link several scopes behind each other for a big scope
Inlets
frac32 in
Outlets
None
Displays
int8array128.vbar 1
int8array128.vbar 2
int8array128.vbar 3
int8array128.vbar 4
int8array128.vbar 5
int8array128.vbar 6
int8array128.vbar 7
int8array128.vbar 8
int8_t t[1024];
bool trg;
int32_t write;
int32_t sum;int i;
for (i = 0; i < 1024; i++)
t[i] = 0;write += 1;
write = write & ((1 << 13) - 1);
int i;
i = write >> 3;
if (i < 128) {
disp_1[i] = inlet_in >> 21;
} else if (i < 256) {
disp_2[i - 128] = inlet_in >> 21;
} else if (i < 384) {
disp_3[i - 256] = inlet_in >> 21;
} else if (i < 512) {
disp_4[i - 384] = inlet_in >> 21;
} else if (i < 640) {
disp_5[i - 512] = inlet_in >> 21;
} else if (i < 768) {
disp_6[i - 640] = inlet_in >> 21;
} else if (i < 768) {
disp_7[i - 768] = inlet_in >> 21;
} else {
disp_8[i - 896] = inlet_in >> 21;
}
