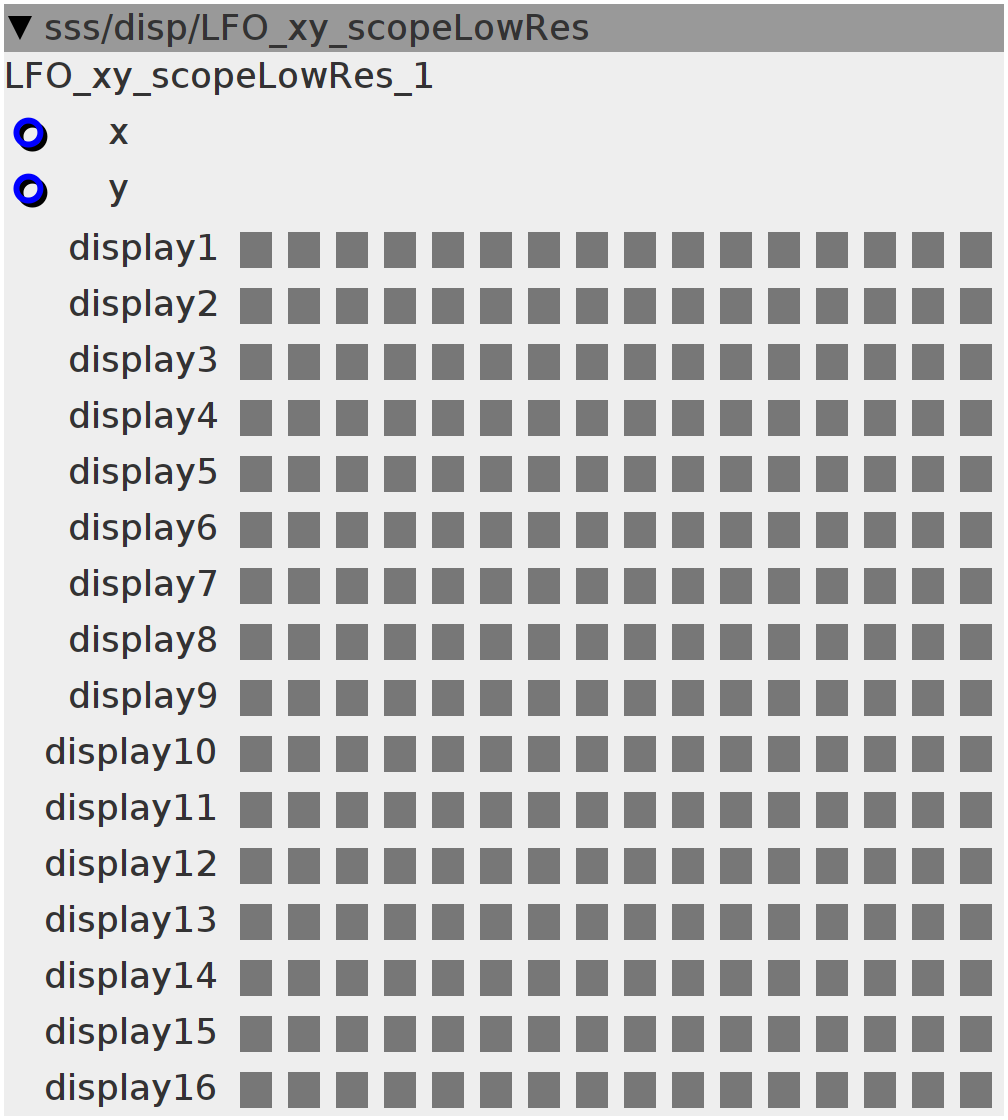

LFO_xy_scopeLowRes
low resolution xy scope for control signals
Inlets
frac32 x
frac32 y
Outlets
None
Displays
int32.bar16 display1
int32.bar16 display2
int32.bar16 display3
int32.bar16 display4
int32.bar16 display5
int32.bar16 display6
int32.bar16 display7
int32.bar16 display8
int32.bar16 display9
int32.bar16 display10
int32.bar16 display11
int32.bar16 display12
int32.bar16 display13
int32.bar16 display14
int32.bar16 display15
int32.bar16 display16
int i;
int32_t table[64];int x = inlet_x >> 23;
switch (inlet_y >> 23 > 0 ? inlet_y >> 23 : 0) {
case 0:
disp_display16 = x;
break;
case 1:
disp_display15 = x;
break;
case 2:
disp_display14 = x;
break;
case 3:
disp_display13 = x;
break;
case 4:
disp_display12 = x;
break;
case 5:
disp_display11 = x;
break;
case 6:
disp_display10 = x;
break;
case 7:
disp_display9 = x;
break;
case 8:
disp_display8 = x;
break;
case 9:
disp_display7 = x;
break;
case 10:
disp_display6 = x;
break;
case 11:
disp_display5 = x;
break;
case 12:
disp_display4 = x;
break;
case 13:
disp_display3 = x;
break;
case 14:
disp_display2 = x;
break;
case 15:
disp_display1 = x;
break;
}
if (!(inlet_y >> 23 == 0)) {
disp_display16 = -1;
}
if (!(inlet_y >> 23 == 1)) {
disp_display15 = -1;
}
if (!(inlet_y >> 23 == 2)) {
disp_display14 = -1;
}
if (!(inlet_y >> 23 == 3)) {
disp_display13 = -1;
}
if (!(inlet_y >> 23 == 4)) {
disp_display12 = -1;
}
if (!(inlet_y >> 23 == 5)) {
disp_display11 = -1;
}
if (!(inlet_y >> 23 == 6)) {
disp_display10 = -1;
}
if (!(inlet_y >> 23 == 7)) {
disp_display9 = -1;
}
if (!(inlet_y >> 23 == 8)) {
disp_display8 = -1;
}
if (!(inlet_y >> 23 == 9)) {
disp_display7 = -1;
}
if (!(inlet_y >> 23 == 10)) {
disp_display6 = -1;
}
if (!(inlet_y >> 23 == 11)) {
disp_display5 = -1;
}
if (!(inlet_y >> 23 == 12)) {
disp_display4 = -1;
}
if (!(inlet_y >> 23 == 13)) {
disp_display3 = -1;
}
if (!(inlet_y >> 23 == 14)) {
disp_display2 = -1;
}
if (!(inlet_y >> 23 == 15)) {
disp_display1 = -1;
}
