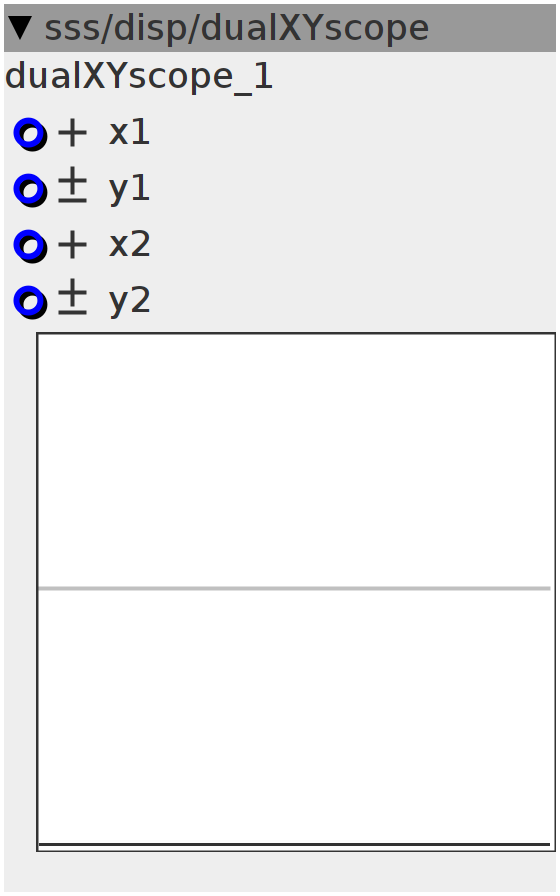

dualXYscope
bipolar control rate signal oscilloscope (time domain), showing 128 consecutive samples
Inlets
frac32.positive x1
frac32.positive x2
frac32.bipolar y1
frac32.bipolar y2
Outlets
None
Displays
int8array128.vbar scope
Declaration
int8_t t[128];
int index;
Init
int i;
for (i = 0; i < 128; i++)
t[i] = 0;
index = 0;
Control Rate
int i;
for (i = 0; i < 128; i++) {
disp_scope[i] = 0;
}
disp_scope[__USAT(inlet_x1 >> 20, 8)] = inlet_y1 >> 20;
disp_scope[__USAT(inlet_x2 >> 20, 8)] = inlet_y2 >> 20;
