biquad_state bs[8];
biquad_coefficients bc;
uint32_t phs, prv;
int32_t accu, bandL, bandH, FrqL, FrqH;
int32_t hp[4];
int i;
int32_t SQRT(int32_t IN) {
  int32_t ai = IN;
  float aif = ai;
  aif *= (1 << 27);
  aif = _VSQRTF(aif);
  int32_t Out = (int)aif;
  return Out;
}
int32_t frac_log(int32_t a) {
  Float_t f;
  f.f = a;
  int32_t r1 = ((f.parts.exponent & 0x7F) - 18) << 24;
  int32_t r3 = logt[f.parts.mantissa >> 15] << 10;
  return r1 + r3;
}

int32_t FTOM(int32_t freq) {
  int32_t ptch;
  int32_t mid;
  MTOFEXTENDED(0, mid);

  mid = frac_log(mid);

  int32_t to;
  to = frac_log(freq);
  return ptch = ((to - mid >> 1) * 3) >> 3;
};

biquad_clearstate(&bs[0]);
biquad_clearstate(&bs[1]);
biquad_clearstate(&bs[2]);
biquad_clearstate(&bs[3]);
accu = (514 << 10);
phs = 0;
hp[0] = 0;
hp[1] = 0;
hp[2] = 0;
hp[3] = 0;
bandL = 132120576;
bandH = 133861216;
FrqL = -31 << 21;
FrqH = 1 << 27;

// readposition
int32_t frq, freq;
MTOF(param_rate, freq);
phs += -freq >> 10;
// clear when restart
/*
if((phs>>1)>(prv>>1))
{
      biquad_clearstate(&bs[0]);
      biquad_clearstate(&bs[1]);
      biquad_clearstate(&bs[3]);
      biquad_clearstate(&bs[4]);
      accu=0;
      phs=0;
      prv=0;
      bandL=(1<<21);
         bandH=(1<<21);
}
*/
// convert phase to frequency, bandwidth (bandL->bandH) and display position
uint32_t p2;
p2 = phs >> 1;
uint32_t p1 = (p2 >> 21) & 1023;
MTOF(___SMMUL(p2, FrqH - FrqL << 1) + FrqL + (12 << 21), frq)
// calculate biquad coëfficients
biquad_bp_coefs(
    &bc, frq,
    INT_MAX -
        (__USAT(bandL + (___SMMUL(phs >> 1, bandH - bandL) << 1), 27) << 4));
// calculate biquad filters
int32_t out[BUFSIZE];
biquad_dsp(&bs[0], &bc, inlet_in, out);
for (int k = 1; k < param_poles + 1; k++) {
  biquad_dsp(&bs[k], &bc, out, out);
}
// get amplitude of filtered band
int sabs = 0;
for (i = 0; i < BUFSIZE; i++) {
  int32_t v = out[i];
  sabs += v > 0 ? v : -v;
}
// envelope follower of amplitude
accu -= accu >> 3;
accu += sabs >> 5;
int32_t Accu = FTOM((frac_log(accu > (514 << 10) ? accu : (514 << 10))));
Accu += (20 << 18);

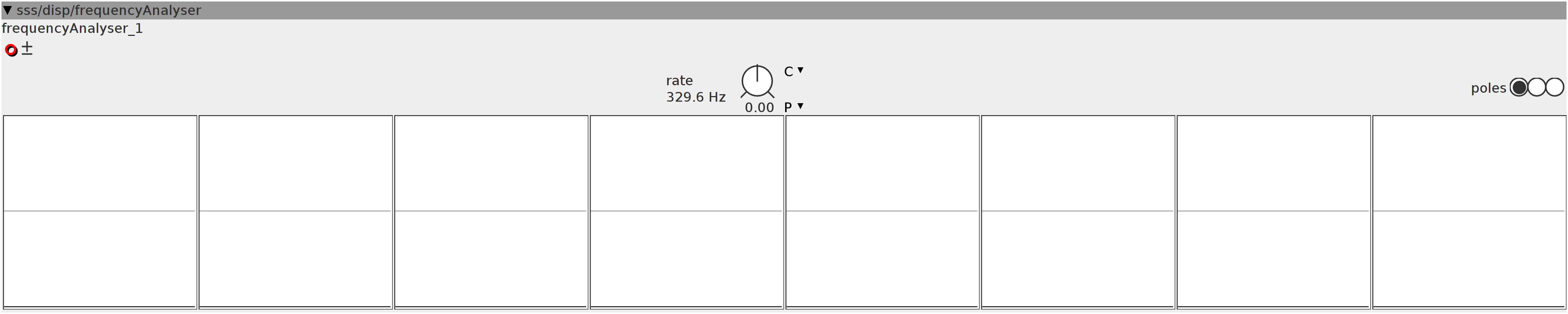

// put frequency amplitudes in displays
if (p1 < 128) {
  disp_1[p1] = Accu >> 18;
} else if (p1 < 256) {
  disp_2[p1 - 128] = Accu >> 18;
} else if (p1 < 384) {
  disp_3[p1 - 256] = Accu >> 18;
} else if (p1 < 512) {
  disp_4[p1 - 384] = Accu >> 18;
} else if (p1 < 640) {
  disp_5[p1 - 512] = Accu >> 18;
} else if (p1 < 768) {
  disp_6[p1 - 640] = Accu >> 18;
} else if (p1 < 896) {
  disp_7[p1 - 768] = Accu >> 18;
} else {
  disp_8[p1 - 896] = Accu >> 18;
}

prv = phs;
