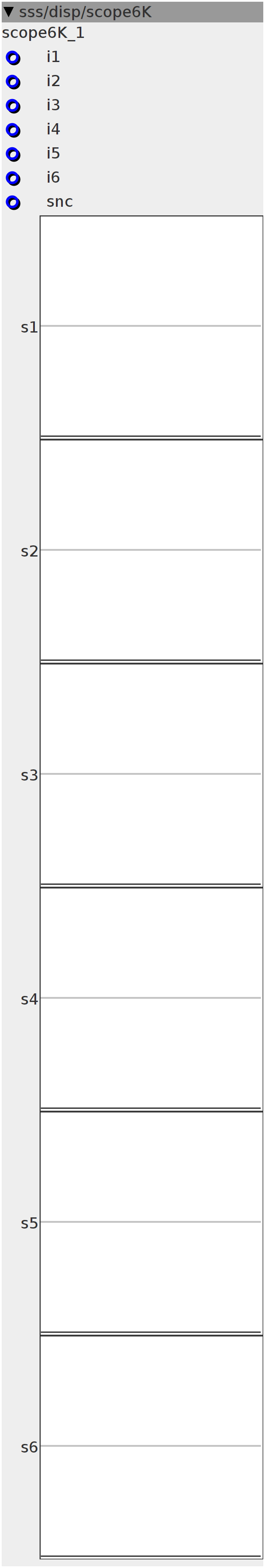

scope6K
6 displays with a shared sync input to track phase-relations of modulation signals
Inlets
frac32 i1
frac32 i2
frac32 i3
frac32 i4
frac32 i5
frac32 i6
frac32 snc
Outlets
None
Displays
int8array128.vbar s1
int8array128.vbar s2
int8array128.vbar s3
int8array128.vbar s4
int8array128.vbar s5
int8array128.vbar s6
int32_t t[6][128];
int index;
bool trg;int i;
int j;
for (j = 0; j < 6; j++) {
for (i = 0; i < 128; i++) {
t[j][i] = 0;
}
}
index = 0;int i;
if ((inlet_snc > 0) && (!trg) && (index == 128)) {
index = 0;
}
trg = inlet_snc > 0 ? 1 : 0;
if (index < 128) {
t[0][index] = (uint8_t)(inlet_i1 >> 21);
t[1][index] = (uint8_t)(inlet_i2 >> 21);
t[2][index] = (uint8_t)(inlet_i3 >> 21);
t[3][index] = (uint8_t)(inlet_i4 >> 21);
t[4][index] = (uint8_t)(inlet_i5 >> 21);
t[5][index] = (uint8_t)(inlet_i6 >> 21);
index += 1;
}
if (index == 128) {
for (i = 0; i < 128; i++) {
disp_s1[i] = t[0][i];
disp_s2[i] = t[1][i];
disp_s3[i] = t[2][i];
disp_s4[i] = t[3][i];
disp_s5[i] = t[4][i];
disp_s6[i] = t[5][i];
}
}
