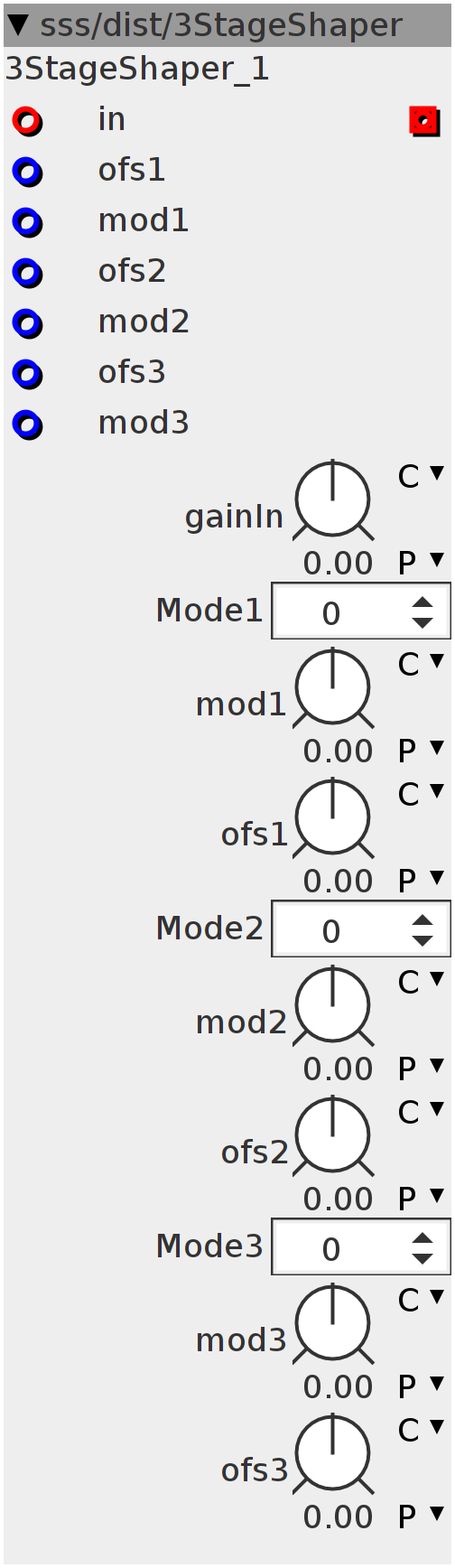

3StageShaper
Multistage multimode waveshaper This module features 3 stages with selectable waveshaper-mode. Each mode will leave the incoming waveform unharmed as long as it's values are zero. As soon as any of the values are changed, the mode will induce it's destructive property. Offset offsets the incoming waveform (dc-offset) mod# will apply an amount of the mode-effect.
Inlets
frac32buffer in
frac32 ofs1
frac32 mod1
frac32 ofs2
frac32 mod2
frac32 ofs3
frac32 mod3
Outlets
frac32buffer out
Parameters
int32 Mode1
int32 Mode2
int32 Mode3
frac32.s.map gainIn
frac32.s.map mod1
frac32.s.map ofs1
frac32.s.map mod2
frac32.s.map ofs2
frac32.s.map mod3
frac32.s.map ofs3
int32_t audio;
int32_t LP;
int32_t HP;
int32_t mode1(int32_t input, int32_t modulate) {
audio = input > 0 ? input + ___SMMUL((input - (1 << 27)) << 3, modulate << 2)
: input + ___SMMUL((input + (1 << 27)) << 3, modulate << 2);
}
int32_t mode2(int32_t input, int32_t modulate) {
int32_t sine;
SINE2TINTERP((input << 3) + ___SMMUL(input << 5, modulate << 4), sine)
audio = sine >> 4;
}
int32_t mode3(int32_t input, int32_t modulate) {
int32_t sine;
SINE2TINTERP(__SSAT((input << 2) + ___SMMUL(input << 5, modulate << 4), 31),
sine)
audio = sine >> 4;
}
int32_t mode4(int32_t input, int32_t modulate) {
int32_t sine;
SINE2TINTERP(__SSAT((input << 2) + ___SMMUL(input << 4, modulate << 4), 30),
sine)
audio = sine >> 4;
}
int32_t mode5(int32_t input, int32_t modulate) {
audio = ((input + (1 << 27) + modulate) & ((1 << 28) - 1)) - (1 << 27);
}
int32_t mode6(int32_t input, int32_t modulate) {
audio = input / modulate * modulate;
}audio = inlet_in + ___SMMUL(inlet_in << 3, param_gainIn << 3);
switch (param_Mode1 > 0 ? param_Mode1 : 0) {
case 0:
mode1(audio + inlet_ofs1 + param_ofs1, param_mod1 + inlet_mod1);
break;
case 1:
mode2(audio + inlet_ofs1 + param_ofs1, param_mod1 + inlet_mod1);
break;
case 2:
mode3(audio + inlet_ofs1 + param_ofs1, param_mod1 + inlet_mod1);
break;
case 3:
mode4(audio + inlet_ofs1 + param_ofs1, param_mod1 + inlet_mod1);
break;
case 5:
mode6(audio + inlet_ofs1 + param_ofs1, param_mod1 + inlet_mod1);
break;
}
switch (param_Mode2 > 0 ? param_Mode2 : 0) {
case 0:
mode1(audio + inlet_ofs2 + param_ofs2, param_mod2 + inlet_mod2);
break;
case 1:
mode2(audio + inlet_ofs2 + param_ofs2, param_mod2 + inlet_mod2);
break;
case 2:
mode3(audio + inlet_ofs2 + param_ofs2, param_mod2 + inlet_mod2);
break;
case 3:
mode4(audio + inlet_ofs2 + param_ofs2, param_mod2 + inlet_mod2);
break;
case 4:
mode5(audio + inlet_ofs2 + param_ofs2, param_mod2 + inlet_mod2);
break;
case 5:
mode6(audio + inlet_ofs2 + param_ofs2, param_mod2 + inlet_mod2);
break;
}
switch (param_Mode3 > 0 ? param_Mode3 : 0) {
case 0:
mode1(audio + inlet_ofs3 + param_ofs3, param_mod3 + inlet_mod3);
break;
case 1:
mode2(audio + inlet_ofs3 + param_ofs3, param_mod3 + inlet_mod3);
break;
case 2:
mode3(audio + inlet_ofs3 + param_ofs3, param_mod3 + inlet_mod3);
break;
case 3:
mode4(audio + inlet_ofs3 + param_ofs3, param_mod3 + inlet_mod3);
break;
case 4:
mode5(audio + inlet_ofs3 + param_ofs3, param_mod3 + inlet_mod3);
break;
case 5:
mode6(audio + inlet_ofs3 + param_ofs3, param_mod3 + inlet_mod3);
break;
}
audio = audio > (1 << 27) ? (1 << 27) - (audio - (1 << 27)) : audio;
audio = audio < (-1 << 27) ? (-1 << 27) - (audio + (1 << 27)) : audio;
LP = LP + (((audio >> 1) - LP) >> 1);
HP = HP + ((LP - HP) >> 11);
outlet_out = LP - HP;
