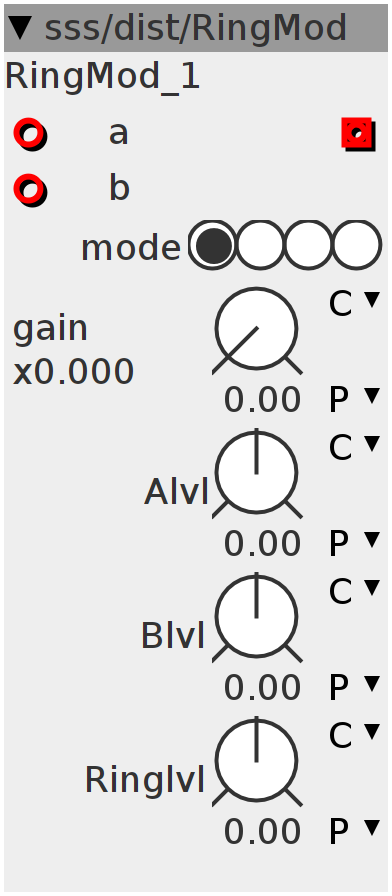

RingMod
multi-mode Ring Modulator mode 1 just ringmodulates input A with input B in the normal bipolar sence. mode 2 first multiplies input A with itself before multiplying it with input B mode 3 first multiplies input B with itself before multiplying it with input A mode 4 first multiplies input A and B width themselves before multiplying them with each other. input can be saturated befor the ringmodulation process. Alvl is the dry-level of input A to the output Blvl is the dry-level of input B to the output Ringlvl is the wet-level of the ringmodulated signal
Inlets
frac32buffer input
frac32buffer input
Outlets
frac32buffer output
Parameters
frac32.u.map.gain16 gain
frac32.s.map Alvl
frac32.s.map Blvl
frac32.s.map Ringlvl
int32.hradio mode
int32_t hp;int32_t A =
__SSAT(___SMMUL(param_gain >> 2, __SSAT(inlet_a, 27) << 4) << 1, 27);
int32_t B =
__SSAT(___SMMUL(param_gain >> 2, __SSAT(inlet_b, 27) << 4) << 1, 27);
int32_t result;
if (param_mode == 0) {
result = ___SMMUL(A << 3, B << 2);
}
if (param_mode == 1) {
result = ___SMMUL(A << 3, A << 2);
result = ___SMMUL(result << 3, B << 2);
}
if (param_mode == 2) {
result = ___SMMUL(A << 3, A << 2);
result = ___SMMUL(result << 3, B << 2);
}
if (param_mode == 3) {
int32_t risult = ___SMMUL(A << 3, A << 2);
result = ___SMMUL(B << 3, B << 2);
result = ___SMMUL(result << 3, risult << 2);
}
result = ___SMMUL(result << 4, param_Ringlvl << 4) +
___SMMUL(inlet_a << 3, param_Alvl << 2) +
___SMMUL(inlet_b << 3, param_Blvl << 2);
hp = hp + ((result - hp) >> 13);
outlet_result = result - hp;
