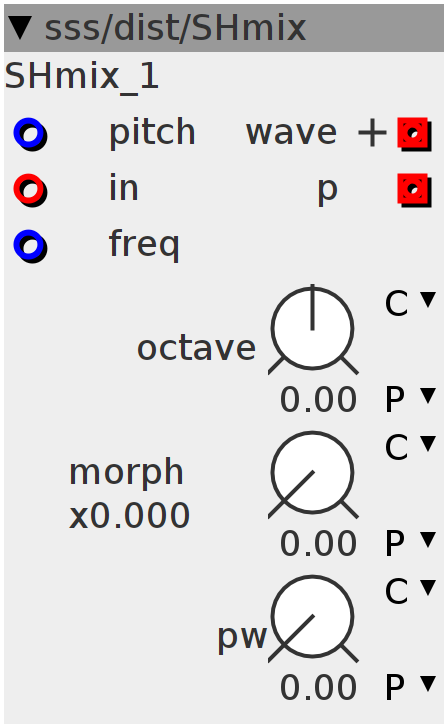

SHmix
Mixing S&H modulator internal phase-oscillator holds the last value on the "in" input when returning to the start of the phase. While phase goes up, it mixes in the incoming signal. PW controls the point where the mix-in starts.
Inlets
frac32 pitch
frac32 freq
frac32buffer phase increment
Outlets
frac32buffer.positive phasor wave
frac32buffer p
Parameters
frac32.u.map.squaregain morph
frac32.u.map pw
frac32.s.map octave
uint32_t Phase;
int32_t SQR;
int32_t val;
uint32_t prv;Phase = 0;uint32_t freq;
MTOFEXTENDED(((param_octave >> 24) * 12 << 21) + inlet_pitch, freq);
uint32_t F;
F = ___SMMUL(param_morph, param_morph) >> 9;
freq += inlet_freq + F;
float32_t ratio;
int32_t pw = param_pw;
ratio = (float32_t)(1 << 27) / ((1 << 27) - pw) * 32;Phase += freq;
uint32_t p2 = Phase >> 5;
p2 = p2 > pw ? p2 - pw : 0;
p2 = p2 * ratio;
if (Phase < prv) {
SQR = inlet_in;
}
int32_t phasor = SQR + ___SMMUL(inlet_in - SQR << 1, p2 >> 1);
val += (phasor - val) >> 9;
outlet_wave = phasor - val;
prv = Phase;
outlet_p = p2 >> 4;
