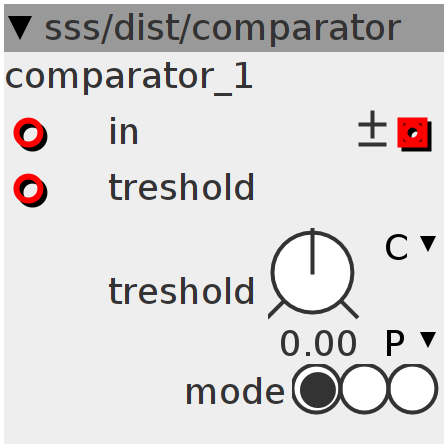

comparator

high quality audio comparator using blit synthesis (bandwidth limited) mode 0: 3-way comparator (low,0,high) mode 1: 2-way comparator (low,high) mode 2: quantizer
Author: Remco van der Most
License: BSD
Github: sss/dist/comparator.axo

Inlets

frac32buffer level input

frac32buffer trigger input, triggers on rising zero-crossing

Outlets

frac32buffer.bipolar audio output

Parameters

frac32.s.map treshold

int32.hradio mode

Declaration
static const int blepvoices = 16;
int16_t *oscp[blepvoices];
int32_t vgain[blepvoices];
uint32_t nextvoice;
int32_t i0;
int32_t in0;
int32_t acc;
int32_t trg;
int32_t v26 = 1 << 26;
int32_t lp;
Init
int j;
for (j = 0; j < blepvoices; j++)
  oscp[j] = &blept[BLEPSIZE - 1];
nextvoice = 0;
i0 = 0;
in0 = 0;
acc = 0;
Control Rate
int j;
int16_t *lastblep = &blept[BLEPSIZE - 1];

for (j = 0; j < BUFSIZE; j++) {
  int32_t treshold = param_treshold + inlet_treshold[j] >> 1;
  int i;
  int32_t VL;
  switch (param_mode) {
  case 0:
    VL = inlet_in[j] > treshold ? v26 : (inlet_in[j] < -treshold ? -v26 : 0);
    break;
  case 1:
    VL = inlet_in[j] > treshold ? v26 : -v26;
    break;
  case 2:
    treshold = (((treshold > 0 ? treshold : -treshold) >> 14) + 1) << 13;
    VL = (int32_t)(inlet_in[j] / treshold) * treshold -
         (inlet_in[j] < 0 ? treshold : 0);
    break;
  }
  int32_t i1;
  if (param_mode < 2) {
    i1 = VL;
  } else {
    i1 = inlet_in[j] - VL - (treshold >> 2);
  }
  if (param_mode < 2 ? (!(i1 == i0)) : ((i1 > 0) && !(i0 > 0))) { // dispatch
    nextvoice = (nextvoice + 1) & (blepvoices - 1);
    int32_t x = (i1 << 6) / (i1 - i0);
    oscp[nextvoice] = &blept[x];
    int32_t val = (((64 - x) * (VL >> 2)) + (x * (in0 >> 2))) >> 6;
    vgain[nextvoice] = (acc - val) << 2;
    acc = val;
  }

  int32_t sum = 0;
  i0 = i1;
  in0 = VL;                          // param_mode<2?VL:inlet_in[j];
  for (i = 0; i < blepvoices; i++) { // sample
    int16_t *t = oscp[i];
    sum = ___SMMLA((16384 - (*t)) << 16, vgain[i], sum);
    t += 64;
    if (t >= lastblep) {
      t = lastblep;
      vgain[i] = 0;
    }
    oscp[i] = t;
  }
  outlet_out[j] = (sum + acc) << 2;
}
