corruptor

$\text{[math]}$

Heavy distortion unit Just completely mashes up the waveform

Author: Remco van der Most

License: BSD

Github: sss/dist/corruptor.axo

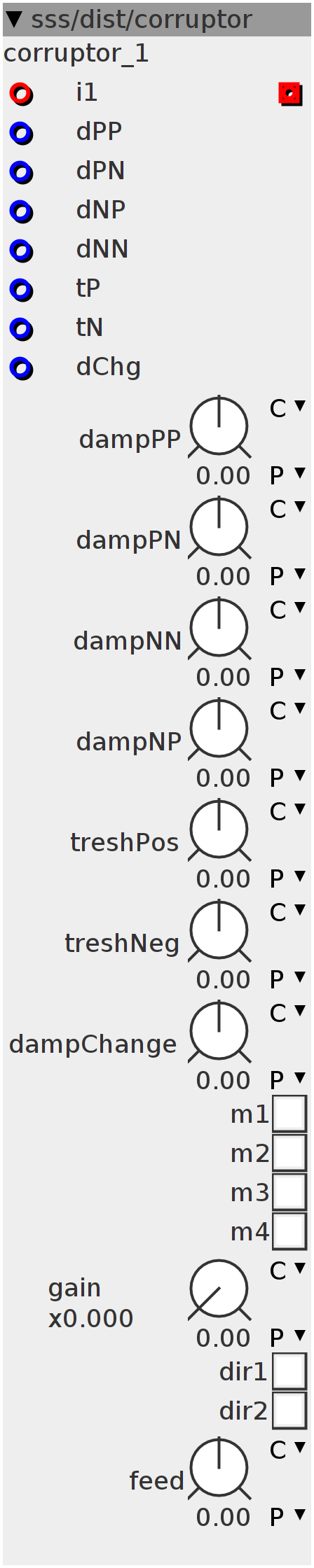

Inlets

frac32 dPP

frac32 dPN

frac32 dNP

frac32 dNN

frac32 tP

frac32 tN

frac32 dChg

frac32buffer i1

Outlets

frac32buffer o1

Parameters

frac32.s.map damprate when signal is above treshPos and has a positive direction

frac32.s.map damprate when signal is above treshPos and has a negative direction

frac32.s.map damprate when signal is below treshNeg and has a negative direction

frac32.s.map damprate when signal is below treshNeg and has a positive direction

frac32.s.map up-trigger treshold for comparator

frac32.s.map down-trigger treshold for comparator

frac32.s.map changerate dampening of the internal filter

frac32.s.map feeds back the output to the input (into self oscillation with lots of glitches and frequency folding)

bool32.tgl log/lin response

bool32.tgl sets positive/negative direction to use for comparator when signal is positive

bool32.tgl sets negative/ positive direction to use for comparator when signal is negative

frac32.u.map.gain add gain for post wrapper

Declaration

int32_t val;
bool up;
bool dn;
int32_t TO;
int32_t To;
int32_t v27 = (1 << 27);
int32_t prev;
int32_t rate;
int32_t to;
int32_t pv;
int32_t out;
int32_t COMPARE(int32_t in, int32_t gain) {
  int32_t A;
  int32_t B;
  int32_t max;
  in += ___SMMUL(gain, __SSAT(in, 28) << 3) << 4;

  max = in > 0 ? in : -in;
  while (max > v27) {
    A = __SSAT(in, 28);
    B = A - (in - A);
    in = B;
    max = B > 0 ? B : -B;
  }

  return out = in;
}

Control Rate

int32_t dampPP;
MTOF(param_dampPP + inlet_dPP, dampPP)
int32_t dampNP;
MTOF(param_dampNP + inlet_dNP, dampNP)
int32_t dampPN;
MTOF(param_dampPN + inlet_dPN, dampPN)
int32_t dampNN;
MTOF(param_dampNN + inlet_dNN, dampNN)
int32_t d1;

MTOF(param_dampChange + inlet_dChg, d1)
int32_t tP = param_treshPos + (inlet_tP >> 3);
int32_t tN = param_treshNeg + (inlet_tN >> 3);

Audio Rate

int32_t in = inlet_i1 + ___SMMUL(param_feed << 3, out);
int dir = in - prev > 0 ? 1 : 0;
if ((in > tP) && (!up) && (param_dir1 > 0 ? !dir : dir)) { //
  up = 1;
  dn = 0;
  To = v27;
}

if ((in < tN) && (!dn) && (param_dir2 > 0 ? dir : !dir)) { //
  up = 0;
  dn = 1;
  To = -v27;
}

to = __SSAT(To + in >> 1, 28);

rate = ___SMMLA(((to - TO) - rate) << 1, d1, rate);
rate -= rate >> 9;
TO += rate;

if ((TO >= val) && dir) {
  if (param_m1 == 0) {
    val = ___SMMLA((TO - val) << 1, dampPP, val);
  }
  if (param_m1 == 1) {
    val += dampPP >> 4;
    val = val > TO ? TO : val;
  }
}
if ((TO >= val) && !dir) {
  if (param_m2 == 0) {
    val = ___SMMLA((TO - val) << 1, dampPN, val);
  }
  if (param_m2 == 1) {
    val += dampPN >> 4;
    val = val > TO ? TO : val;
  }
}
if ((TO < val) && dir) {
  if (param_m4 == 0) {
    val = ___SMMLA((TO - val) << 1, dampNP, val);
  }
  if (param_m4 == 1) {
    val -= dampNP >> 4;
    val = val < TO ? TO : val;
  }
}
if ((TO < val) && !dir) {
  if (param_m3 == 0) {
    val = ___SMMLA((TO - val) << 1, dampNN, val);
  }
  if (param_m3 == 1) {
    val -= dampNN >> 4;
    val = val < TO ? TO : val;
  }
}
if (!((val - __SSAT(val, 28)) == 0)) {
  // val-=___SMMUL(val,val>0?val:-val);
  // val-=___SMMUL(val,val>0?val:-val);
}

outlet_o1 = COMPARE(val, param_gain) + pv >> 1;
pv = out;
// outlet_o1=val>>1;
prev = in;
