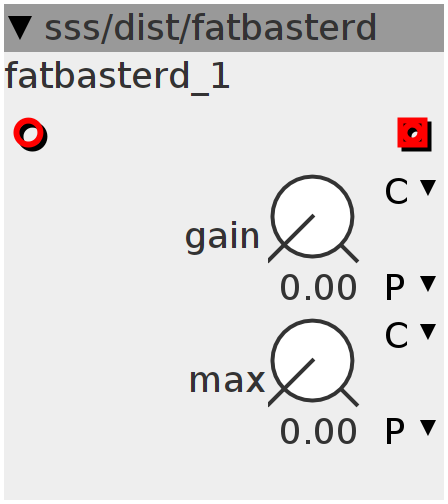

fatbasterd
saturator The more gain, the more your ears bleed of squared signals Max sets the max-level (gain must be turned on a bit for it to work, otherwise, signal goes through unharmed... which it probably shouldn't otherwise you wouldn't use this module, would you?)
Inlets
frac32buffer in
Outlets
frac32buffer out
Parameters
frac32.u.map gain
frac32.u.map max
Audio Rate
int dir = inlet_in > 0 ? 1 : -1;
int32_t in = inlet_in > 0 ? inlet_in : -inlet_in;
int32_t gian = ___SMMUL(param_gain << 3, param_gain << 2);
float32_t gain = ___SMMUL((gian + (1 << 17)) << 2, in << 3);
gain = 1 + gain / (1 << 19);
outlet_out = ((param_max) - ((param_max)-in) / gain) * dir;
