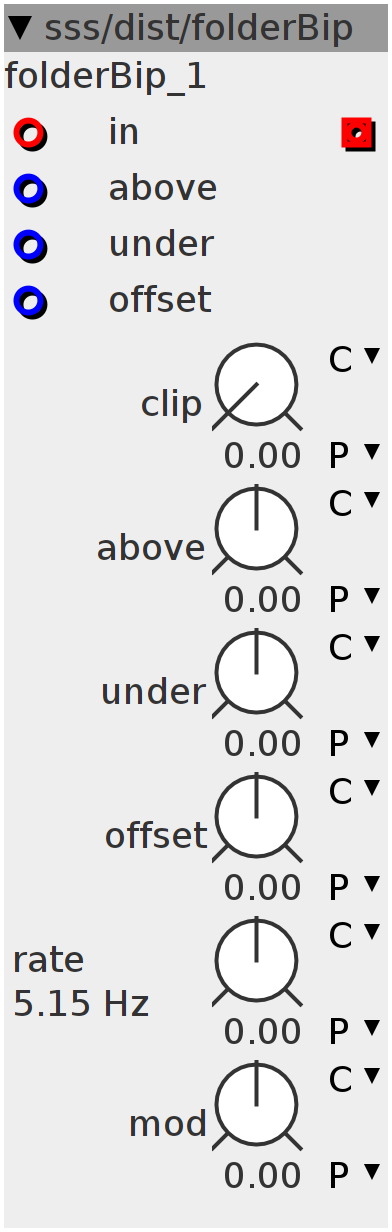

folderBip
bipolar wavefolder Has independent wavefold strength for positive and negative parts of the signal.
Inlets
frac32buffer in
frac32 above
frac32 under
frac32 offset
Outlets
frac32buffer out
Parameters
frac32.u.map clip
frac32.s.map above
frac32.s.map under
frac32.s.map offset
frac32.s.map mod
frac32.s.map.lfopitch rate
int32_t phs;
int32_t v30 = 1 << 30;
int32_t WRP(int32_t IN, int32_t lvl) {
IN = ___SMMUL(IN << 2, lvl << 3) << 5;
IN = (IN << 4) >> 4;
return IN = __SSAT(IN, 27) * 2 - IN;
}
int32_t lp;int32_t rate;
MTOFEXTENDED(param_rate, rate)
rate = rate >> 8;
int32_t ABO = param_above + inlet_above;
int32_t UND = param_under + inlet_under;
int32_t offset = param_offset + inlet_offset << 2;phs += rate;
int32_t r;
r = ___SMMUL((phs > 0 ? phs : -phs) - v30 << 1, param_mod) << 1;
int32_t in = inlet_in + offset + r;
bool over = (in > 0 ? in : -in) > param_clip ? 1 : 0;
int32_t under = 0;
int32_t above = 0;
outlet_out = (over > 0 ? WRP(in >> 1, ABO) << 1 : WRP(in, UND)) + inlet_in >> 1;
