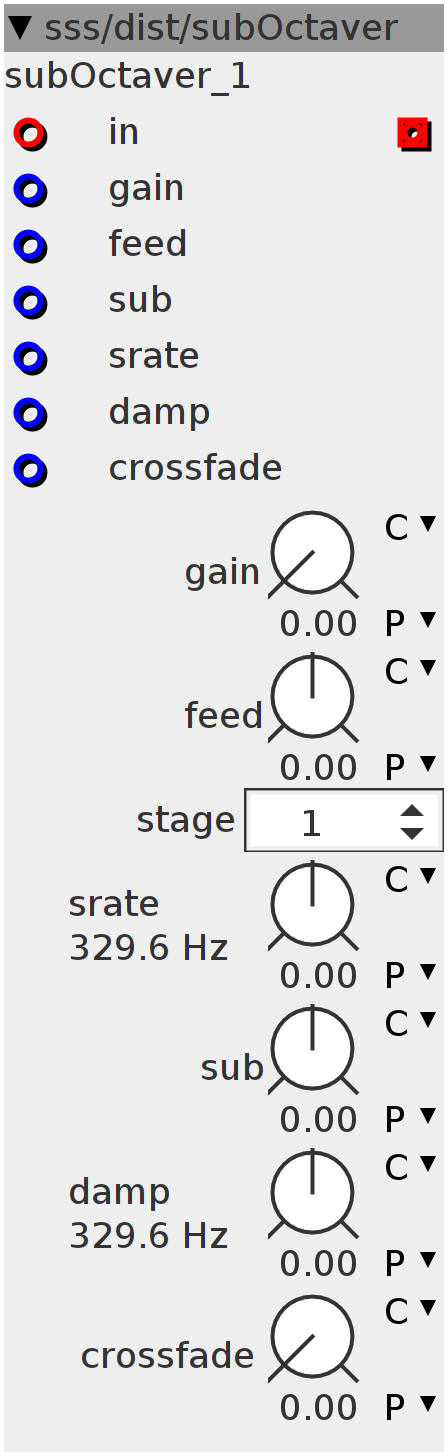

subOctaver
octaver with sub-octaver Gain and feed control the amount of higher frequencies being added to the signal Sub controls the volume of the sub-frequency being added srate controls the rate of the up/down slopes of the sub (dampening higher harmonics that are created by the sub) Stage controls the sub-frequency-divider amount Damp controls the cutoff frequency of the internal 12dB lowpass filter Crossfade mixes between original and modified signal
Inlets
frac32buffer in
frac32 gain
frac32 feed
frac32 sub
frac32 srate
frac32 damp
frac32 crossfade
Outlets
frac32buffer out
Parameters
int32 stage
frac32.s.map.pitch srate
frac32.s.map.pitch damp
frac32.u.map gain
frac32.u.map crossfade
frac32.s.map feed
frac32.s.map sub
int32_t val1;
int32_t val2;
int32_t val3;
int32_t feed;
int32_t sub;
int strig;
int32_t SUB;
int32_t p[6];
int32_t k[6];int32_t sfrq;
MTOFEXTENDED(param_srate + inlet_srate, sfrq)
int32_t iG = __USAT(param_gain + inlet_gain, 27);
int32_t Fi = param_feed + inlet_feed;
int32_t sU = param_sub + inlet_sub;
int32_t CUT;
MTOF(param_damp + inlet_damp, CUT)
int32_t cross = inlet_crossfade + param_crossfade;
cross = cross & ((1 << 28) - 1);
cross = cross > (1 << 27) ? (1 << 28) - cross : cross;
k[0] = (sfrq - p[0]) >> 4;
int32_t iF = p[0];
p[0] = sfrq;
k[1] = (iG - p[1]) >> 4;
int32_t gain = p[1];
p[1] = iG;
k[2] = (Fi - p[2]) >> 4;
int32_t Feed = p[2];
p[2] = Fi;
k[3] = (sU - p[3]) >> 4;
int32_t SUb = p[3];
p[3] = sU;
k[4] = (CUT - p[4]) >> 4;
int32_t cut = p[4];
p[4] = CUT;
k[5] = (cross - p[5]) >> 4;
int32_t Cross = p[5];
p[5] = cross;iF += k[0];
gain += k[1];
Feed += k[2];
SUb += k[3];
cut += k[4];
Cross += k[5];
int32_t in = (inlet_in >> 2) - feed;
int32_t rect = in > 0 ? in : -in;
val1 += (rect - val1) >> 11;
rect = rect - val1;
if ((inlet_in > 0) && !strig) {
sub = (sub + 1) & ((1 << param_stage) - 1);
strig = 1;
} else if (inlet_in < 0) {
strig = 0;
}
SUB = __SSAT((sub > (param_stage >> 1) ? 1 : -1) * iF + SUB, 28);
rect = __SSAT(___SMMUL(SUB << 3, SUb << 2) + rect, 28);
val2 = ___SMMLA((rect - val2) << 1, cut, val2);
val3 = ___SMMLA((val2 - val3) << 1, cut, val3);
rect = val3;
rect += ___SMMUL((gain << 4) - (1 << 29), rect << 3);
feed = ___SMMUL(Feed << 2, rect << 2);
int32_t sine;
SINE2TINTERP(in + rect << 4, sine)
outlet_out =
___SMMUL(Cross, sine) + ___SMMUL((1 << 27) - Cross << 3, inlet_in << 2);
